T58L

Product Functionality

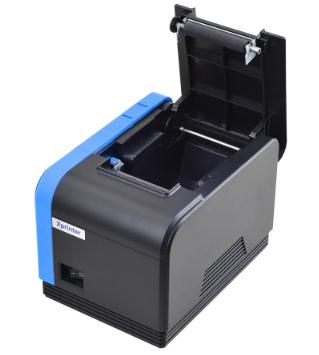

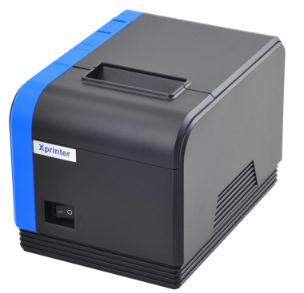

● XP-T58L thermal printer, The open button design, not only with fast printing speed, but also with better mold precision.
● With the perfect appearance structure esign and complete function.
● It is the best choice for Chain Supermarket, Restaurant, Tax Institution warehouse etc to meet all kinds of printing needs.

● Fashionable design, Splendid quality	● High-speed printing, High performance
● Support Logo download and print	● Support GB 18030
● International language	● 100MB Ethernet interface connection, Avoid order missing

Product Specifications

Printing
Printing method	Direct thermal
Print width	48mm
Column capacity	384 dots/line
Printing speed	90mm/s Max.
Interface	USB, Parallel
Printing paper	57.5±0.5mm×φ60mm
Line spacing	3.75mm (Adjustable by commands)
Column number	58mm paper: Font A - 32 columns/Font B - 42 columns/ Chinese,traditional Chinese - 16 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、 PC863（Canadian-French）、PC865（Nordic）、 West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
Buffer
Input buffer	32k bytes
NV Flash	64k bytes
Power
Power adaptor	Input：AC 110V/220V, 50～60Hz
Power source	Output：DC 12V/2.6A
Cash drawer output	DC 12V/1A
Physical characteristics
Weight	0.68KG
Dimensions	170×125×119.5mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～80%)
Reliability
Printer head life	50KM
