58IIQ Cloud Version

Product Overview

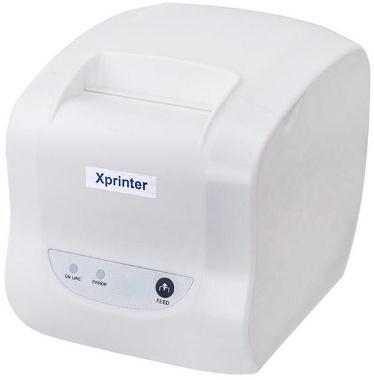

XP-58IIQ is thermal receipt printer. It has big gear printing head. Compatible with ESC/POS commands. High speed, long life time, high quality, with outstanding functions and strong stability

● Big gear printing head.	● Compatible with ESC/POS commands
● High speed, long life time, high quality	● Outstanding functions and strong stability

Specification

Model	XP-58IIQ
Printing
Printing method	Direct thermal
Paper width	57.5±0.5mm
Print width	48 mm
Column capacity	384 dots/line
Printing speed	90 mm/s Max.
Interface	USB+4G / USB+WIFI+4G / USB+Lan+4G / USB+Lan+WIFI
Line spacing	3.75mm (Adjustable by commands)
Roll diameter	50mm
Fonts Symbology
Character size	AFont A: 12x24, Font B: 9x17, CHN: 24*24
Characters /Line	Font A: 32 chars Font B: 42 chars CHN: 16 Character Sets
1D Barcode	UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2D Barcode	QR code
Input buffer	32 Kbytes / 64 Kbytes
NV Flash	64 Kbytes
Power
Power adaptor	Input: AC 110V/220V, 50～60Hz Output: DC 12V/2.6A
Printer input	DC 12V/2.6A
Cash drawer output	DC 12V/1A
Physical characteristics
Weight	0.412kg
Dimensions	148108115mm（D×W×H）
Environmental Requirements
Work environment	Temperature (0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～90%)
Reliability
Printer head life	50 KM
Software
Emulation	ESC/POS
Driver	Windows/Linux/Android/Mac
Utility	Windows & Linux test Utility
SDK	iOS/ Android/ Windows
