C2008

Product Overview

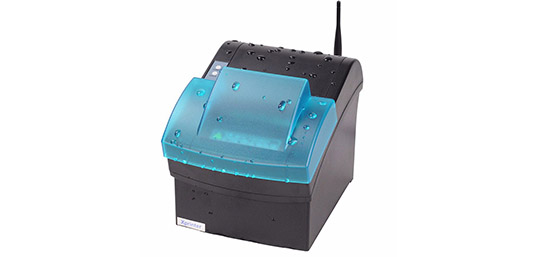

Brand new XP-C2008 With excellent performance, designed for prevent water, oil and dust, also support kitchen printing, Internet and other printing modes.

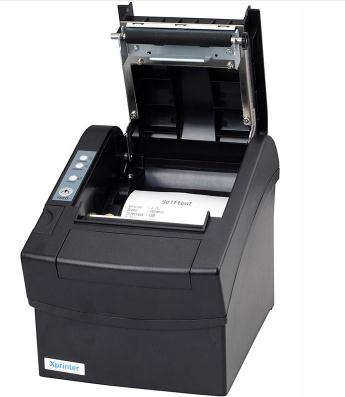

● Easy paper loading, waterproof, oil proof, dustproof design	● Support print prompt and error alarm
● Printing images and characters with high speed, the best printing quality and reliable performance
● Support GB18030 simplified Chinese, traditional Chinese, buyer optional languages	● Compatible with Epson ESC/POS Commands.
● Support printer states minitor function, control printers states at any time.	● Support black mark detection and reprint function.
● Full/Partial option, no paper jamming problem, multiple choice for customer	● Support 256K bytes NV logo download store and print

Product Specification

Printing
Printing method	Direct thermal
Print width	72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity	576 dots/line or 512 dots/line
Printing speed	300mm/s Max.

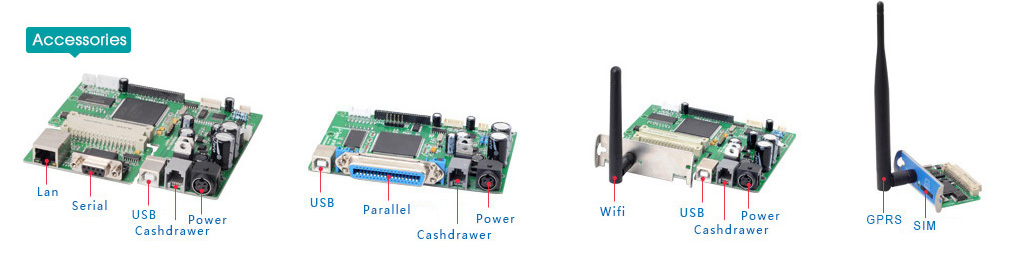

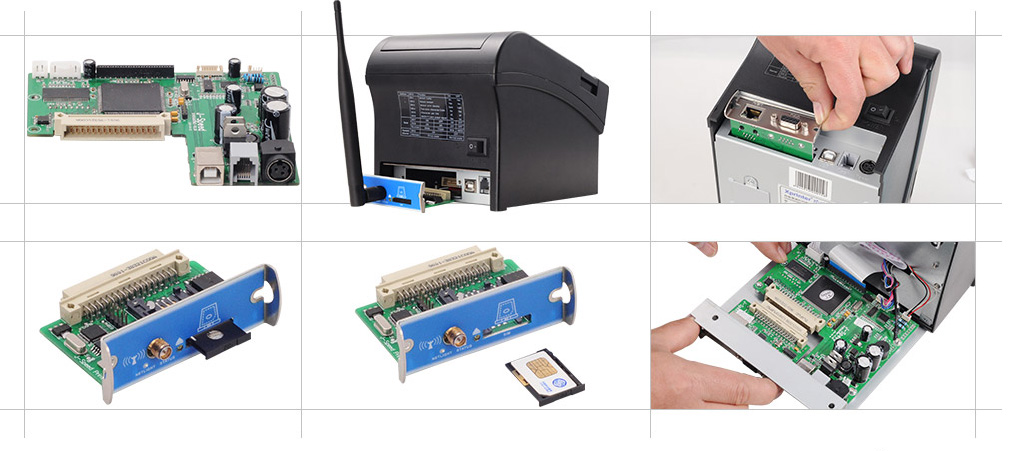

Interface	USB+Serial+Lan/USB+Parallel （Optional : WIFI/Bluetooth)
Printing paper	79.5±0.5mm×φ80mm
Line spacing	3.75mm (Adjustable by commands)
Column number	80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Cutter
Auto cutter	Partial
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D code	QR Code / PDF417
Buffer
Input buffer	2048k bytes
NV Flash	256k bytes
Power
Power adaptor	Input：AC 110V/220V, 50～60Hz
Printer input	DC 24V/2.5A
Cash drawer	DC 24V/1A
Physical characteristics
Weight	1.70KG
Dimensions	190×145×150mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45) humidity(10～80%)
Storage environment	Emperature(-10～60℃) humidity(10～80%)
Reliability
Cutter life	1.5 million cuts
Printer head life	150 KM
