58IIK

Product Overview

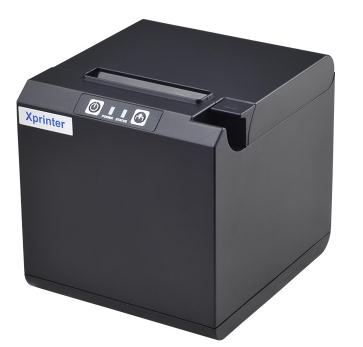

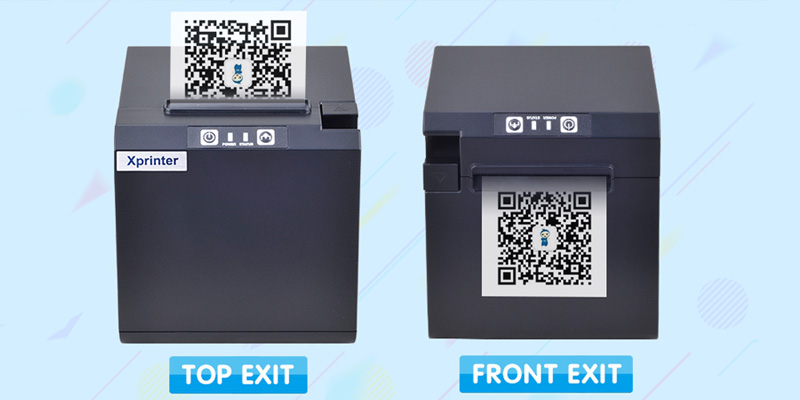

XP-58IIK, small and square shape, rounded corner design, is the perfect combination of straight line and radian, and can easily be slotted into corners without wasting any space at all. The item supports top exit and front exit, easy for you to print. Also, it supports paper out buzzer alarm, quickly response to order coming.

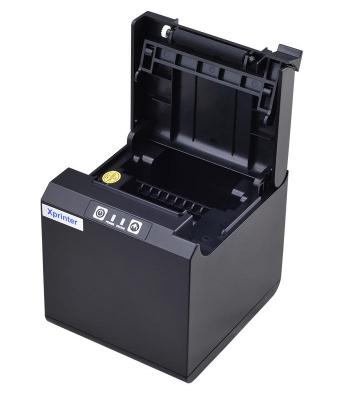

● High operational reliability	● Drop in paper loading
● Support QR code	● Supports a vatity of international languages
● High print speed for both graphics and text

Specification

Model	XP-58IIK
Printing
Printing method	Direct thermal
Paper width	57.5±0.5mm
Print width	48 mm
Column capacity	384 dots/line(adjustable by command)
Printing speed	90 mm/s Max.
Interface	USB/USB+Serial / USB+Bluebooth/ USB+Bluebooth+Serial / USB+Bluebooth+Serial+WiFi
Line spacing	3.75mm (Adjustable by commands)
Fonts Symbology
Character size	AFont A: 12x24, Font B: 9x17, CHN: 24*24
Characters /Line	Font A: 32 chars Font B: 42 chars CHN: 16 Character Sets
1D Barcode	UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2D Barcode	QR code
Input buffer	32 Kbytes
NV Flash	64 Kbytes
Power
Power adaptor	AC 110V/220V, 50～60Hz12VDC, 2.6A
Power source	DC 12V/2.6A
Cash drawer output	DC 12V/1A
Physical characteristics
Weight	0.498Kg

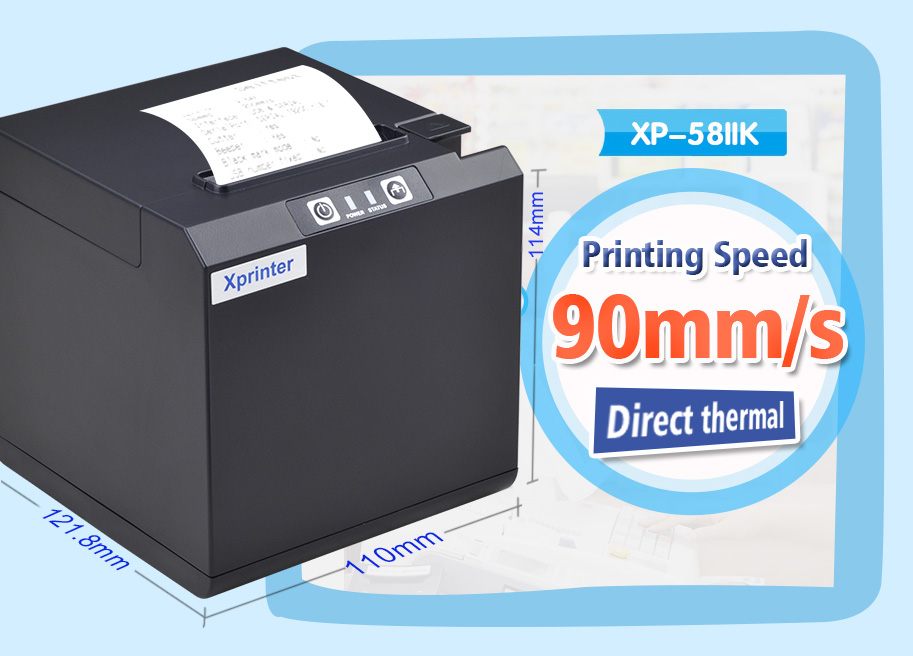

Dimensions	121.8×110×114.6 mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～80%)
Reliability
Printer head life	50 KM
Software
Emulation	ESC/POS
Driver	Windows/JPOS/Linux/Android/Mac
Utility	Windows & Linux test Utility
SDK	iOS/ Android/ Windows
