Product Overview

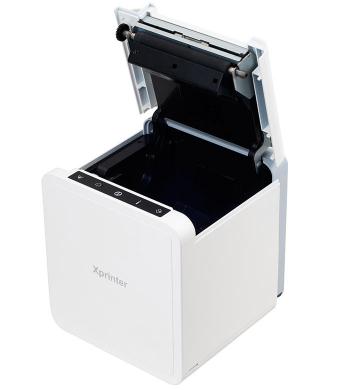

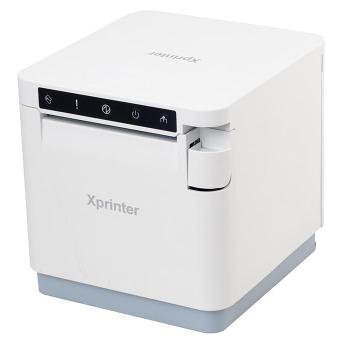

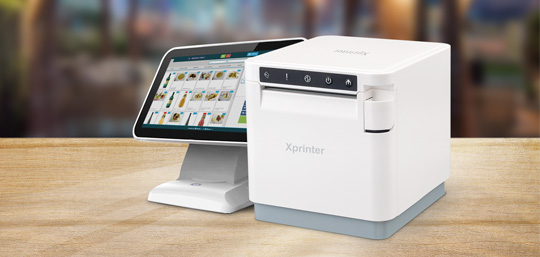

XP-T890H is a very reliable thermal receipt printer. Compatible with mainstream print commands,it is easy to build your ideal POS system and enjoy it great functions for your business such as impressive print speed, paper jam proof, queue printing,different size receipt printing, etc. Hidden back cover perfectly keep cables invisible to create a neat cashier.
| ● Ultra fast print speed: 300mm/s Max. | ● Various size receipt printing |
| ● Support queue printing, reprinting | ● Intelligent cutter control system |

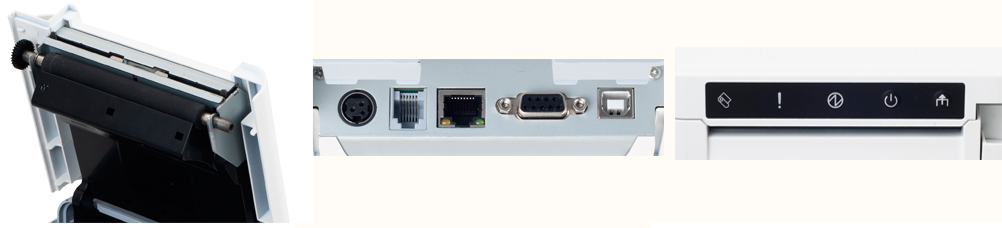

| ● Superior connectivity: USB+Serial+Lan (Optional: Bluetooth/Wifi) | |
Product Specification
| Model | XP-T890H | ||
| Printing | |||
| Printing method | Direct thermal | ||
| Paper width | 58/80/83±0.5mm | ||
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | ||
| Column capacity | 576 dots/line/ 512 dots/line (adjustable by command) | ||
| Printing speed | 300 mm/s Max. | ||
| Interface | USB+Serial+Lan （Optional:Bluetooth/WIFI） | ||
| Line spacing | 3.75mm (Adjustable by commands) | ||
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns | ||
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | ||
| Cutter | |||
| Auto cutter | Partial | ||
| Barcode Character | |||
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | ||
| 1D Barcode | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | ||
| 2D Barcode | QR CODE / PDF417 | ||
| Input buffer | 2048 Kbytes | ||
| NV Flash | 256 Kbytes | ||
| Power | |||
| Power adaptor | Input：AC 240V, 50～60Hz Output: DC 24V/2.5A | ||
| Printer input | DC 24V/2.5A | ||
| Cash drawer output | DC 24V/1A | ||
| Physical characteristics | |||
| Weight | 1.1 Kg | ||
| Dimensions | 130*140*133 mm(D*W*H) | ||
| Environmental Requirements | |||
| Operation environment | Temperature (0～45℃) humidity(10～80%) | ||
| Storage environment | Temperature(-10～60℃) humidity(10～80%) | ||
| Reliability | |||
| Cutter life | 2 million cuts | ||
| Printer head life | 150 KM | ||
| Software | |||
| Emulation | ESC/POS | ||
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS | ||
| Utility | Windows & Linux test Utility | ||
| SDK | iOS/Android/Windows | ||
