  • P503A
  • P503A

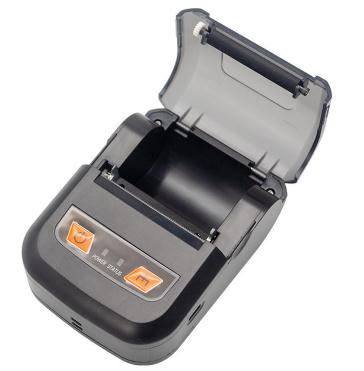

P503A P503A

P503A

  • Brand name: Xprinter
    Place of Origin: China
    Model Number: XP-P503A
    Material: ABS
    Certification: CCC,CE,FCC,RoHS,KC,SAA,BIS,BSMI
    OEM Availability: Yes
    Payment Term: T/T, L/C
  • EMAIL   INQUIRY

Product Overview

● Multiple 1D barcode printing● QR CODE / PDF 417 2D barcode printing
● NV LOGO download picture printing● Compatible with Windows/Linux/Android/iOS systems
● Multiple languages available


Product Specification

ModelXP-P503A
Printing Features
Printing method
Direct thermal
Paper width58 mm
Line spacing3.75mm (Adjustable by commands)
Print width48 mm
Max.print speedMax.70 mm/s
Performance Features
InterfacesUSB+Bluetooth(1+1)
Printhead life
50 KM
CPU storage128 Kbytes
NV Flash

4M bytes

Emulation

ESC/POS

Fonts/Graphics/Symbologies
Character sizeANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified/traditional Chinese:3.0×3.0mm(24×24 dots)
Barcode types

1D: UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D: QRCODE / PDF417

Extended character sheet

PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Rotation0°、90°、180°、270°
Physical Features
Dimension

125.49*90.39*58.57mm (L*W*H)

Weight0.243 kg
Compatible systems
SystemsWindows / Linux / Android / iOS
Power supply
Battery3.7V / 2600mAh
Charging inputDC 5V / 1A
Environmental Conditions
Operation environment0~45℃,10~80%RH  no condensing
Storage environment-10~60 ℃,≤10~90% RH  no condensing
