  • Brand name: Xprinter
    Place of Origin: China
    Model Number: XP-S300L
    Material: ABS
    Certification: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
    OEM Availability: Yes
    Payment Term: T/T, L/C
  • EMAIL   INQUIRY

Product Overview




XP-S300L, "The Melody of Receipt Printer", features Support volume adjustment. Support human voice status reminder.

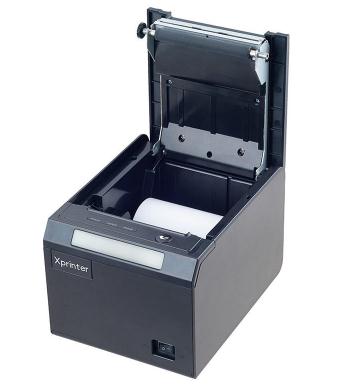

● Easy drop-in paper loading.● Printing speed 300mm/s Max.
● Improved cover design for increased spill resistance.● Handles 80mm or 58mm paper roll sizes.



Specification

ModelXP-S300L
Printing
Printing methodDirect thermal
Paper width57.5±0.5mm/79.5±0.5mm
Print width

72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm

Column capacity576 dots/line(adjustable by command)
Printing speed

300 mm/s Max.

InterfaceUSB+Serial+Lan+RJ45
Line spacing3.75mm (Adjustable by commands)

Column number

80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns

Character size

ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter
Auto cutterPartial
Barcode Character
Extension character
       sheet
PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode typesUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D BarcodeQR Code / PDF417
Input buffer2048 Kbytes
NV Flash256 Kbytes
Power
Power adaptor

Input:AC110V- 240V、50~60Hz

Output:  DC 24V/2.5A

Printer input DC 24V/2.5A
Cash drawerDC 24V/1A
Physical characteristics
Weight0.89 KG
Dimensions170.8*131.4*111mm (L*W*H)
Environmental Requirements
Operation environmentTemperature 0~45 °C  humidity: RH 10~80%
Storage environmentTemperature -10~60℃ humidity: RH 10~90%
Reliability
Cutter life1.5 million cuts
Printer head life150 KM
Software
Emulation
ESC/POS
Driver

Windows/JPOS/Linux/Android/Mac/OPOS

UtilityWindows & Linux test Utility
SDKiOS/Android/Windows
