P324B

Product Overview

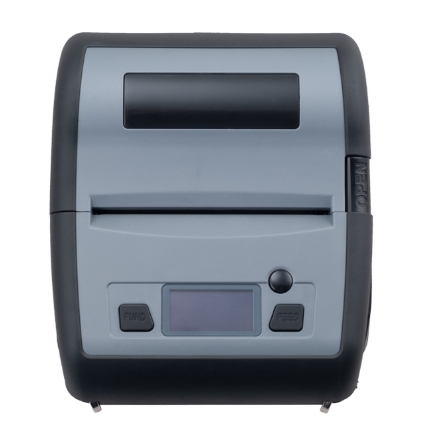

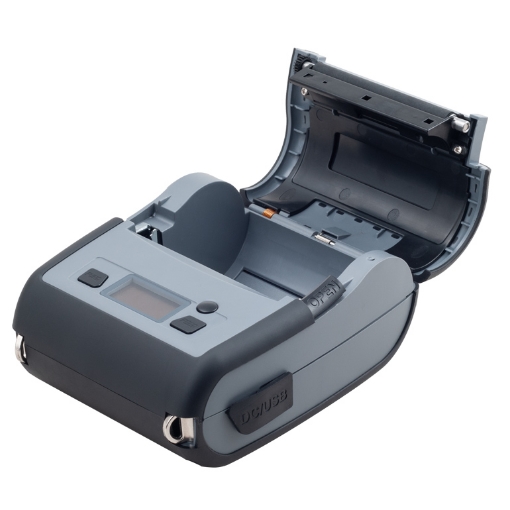

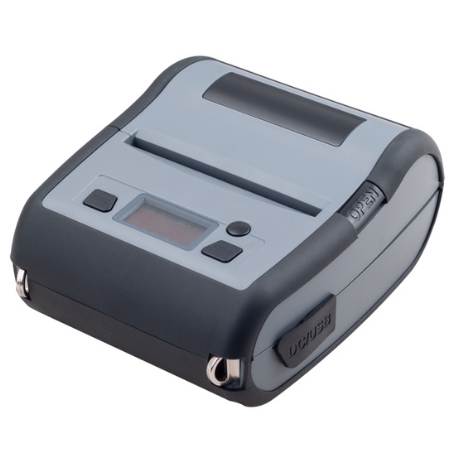

● XP-P324B is a portable label printer with fashionable design and splendid quality. It support LCD screen, easy to operate, 2500 mAh large capacity battery, long standby, MAX 70 mm / sec low noise, high speed printing.

● Support charging by USB	● LCD screen, easy to operate
● 2500mAh large capacity battery, long standby	● MAX 70 mm / sec low noise, high speed printing

Product Specification

Model	XP-P324B
Printing Features
Resolution	203 DPI
Printing method	Direct Thermal
Print speed	70mm (2.7") / s Max.
Max.print width	72 mm (2.8")
Max.print length	1778 mm (70")
Media
Media type	Continuous, gap, black mark
Media width	20 mm ~ 76 mm
Media thickness	0.06 mm ~0.254 mm
Media core diameter	50 mm
Performance Features
Processor	32-bit CPU
Memory	8MB Flash Memory/ 8MB SDRAM
Interface	Stardard version: USB+Bluetooth Optional: USB+WIFI
Screen	OLED (1.3") Resolution:128*64 pix
Sensors	①Gap sensor ②Cover opening sensor ③Black mark sensor
Fonts/Graphics/Symbologies
Internal fonts	8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code	Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST
2D bar code	PDF-417, Maxicode, DataMatrix, QR code,Aztec
Rotation	0°、90°、180°、270°
Emulaion	TSPL、EPL、ZPL、DPL、CPCL、ESC/POS
Physical Features
Dimension	136 mm (L) x 112 mm (W) x 63 mm (H)
Weight	357 g
Reliability
Print head life	30 km
Software
Operation system	Windows/Android/iOS
SDK	Windows/Android/iOS
Power supply
Output	DC 9V2A
Battery	7.4V/2500mAh
Environmental Conditions
Operation environment	5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing
Storage environment	-40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
