  • E200M
  • E200M
E200M E200M

E200M

  • Brand name: Xprinter
    Place of Origin: China
    Model Number: XP-E200M / XP-E260M / XP-E300M
    Material: ABS
    Certification: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
    OEM Availability: Yes
    Payment Term: T/T, L/C
  • EMAIL   INQUIRY

Product Overview

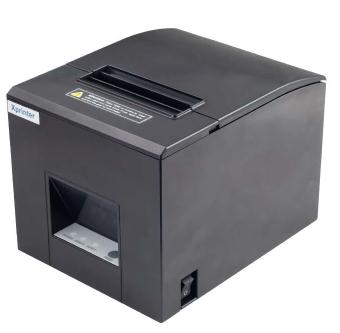

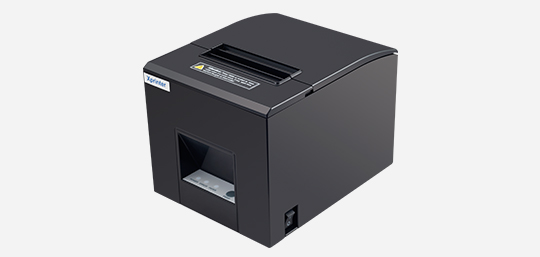

  • XP-E200M/XP-E260M/XP-E300M is an upper level model among 80mm series. While featuring Max print speed of 300mm/s, it takes good care of your receipt printing task with its reliable performance such as reprinting, order reminding function, etc.

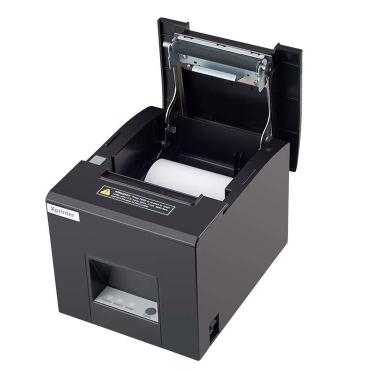

● Easy use features include drop-in paper loading and auto cutter● Reprinting Task Supported
● Printing speed 300mm/s Max. for both graphics and text (XP-E300M)● 58 mm and 80 mm printing mode switch (XP-E300M)



Specification

ModelXP-E200MXP-E260MXP-E300M
Printing
Printing methodDirect thermal
Paper width

58mm / 80mm

Print width

72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm

Column capacity576 dots/line(adjustable by command)
Printing speed200 mm/s Max.260 mm/s Max.300 mm/s Max.
InterfaceUSB+Lan/ USB+Serial/USBUSB+Serial+LanUSB+Serial+Lan
Line spacing3.75mm (Adjustable by commands)

Column number

80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese,traditional Chinese - 21 columns or 24 columns

Character size

ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter
Auto cutterPartial
Barcode Character
Extension character
sheet
PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode typesUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D BarcodeQR Code / PDF417
Input buffer128 Kbytes128 Kbytes2048 Kbytes
NV Flash256 Kbytes                                     256 Kbytes256 Kbytes
Power
Power adaptor

Input: AC 100-240V/50~60Hz

Output:  DC 24V/2.5A

Printer inputDC 24V/2.5A
Cash drawerDC 24V/1A
Physical characteristics
Weight1.16 KG
Dimensions178×140×128mm (D×W×H)
Environmental Requirements
Work environmentTemperature (0~45℃)  humidity(10~80%)
Storage environmentTemperature(-10~60℃) humidity(10~80%)
Reliability
Cutter life1.5 million cuts
Printer head life150 KM
Software
Emulation
ESC/POS
Driver

Windows/JPOS/OPOS/Linux/Android/Mac

UtilityWindows & Linux test Utility
SDKiOS/Android/Windows
