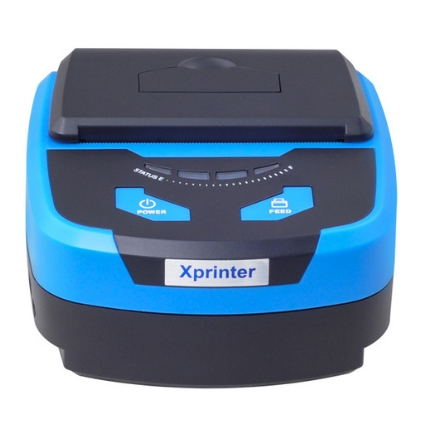

P810

Product Overview

● Xprinter XP-P810 has patented function: Power charging by power bank/computer, long lasting battery life(Up to 2000mAh), support IOS app and Android device connection, support Bluetooth and Wifi connection, large paper roll capacity(diameter 50mm).

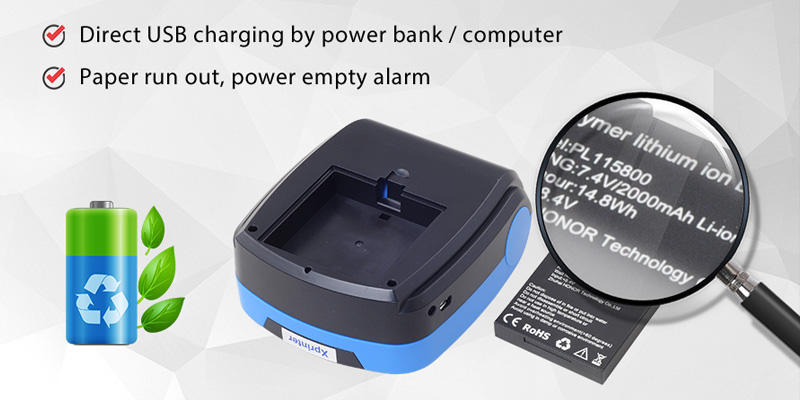

● Patented function: Power charging by power bank/computer	● Long lasting battery life(Up to 2000mAh)
● Support IOS app and Android device connection	● Support Bluetooth and Wifi connection
● Large paper roll capacity(diameter 50mm)

Specification

Printing
Printing method	Direct thermal
Paper width	79.5±0.5mm
Paper roll diameter	50mm
Paper thickness	0.06 - 0.08mm
Column capacity	576dots/line 512dots/line
Printing speed	70mm/s Max.
Interface	USB+Bluetooth / USB+Wifi / USB+Wifi+Bluetooth
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） simplified/traditional Chinese：3.0×3.0mm（24×24 dots）
Barcode Character
Extented character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、 PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	1D:UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 2D:QR CODE/PDF417
Power
Power adaptor	Input :AC 110V/240V, 50～60Hz, Output：DC 9V/2A.
Printer input	DC 9V/2A
Battery	7.4V/2000mAh
Physical characteristics
Gross weight	325g

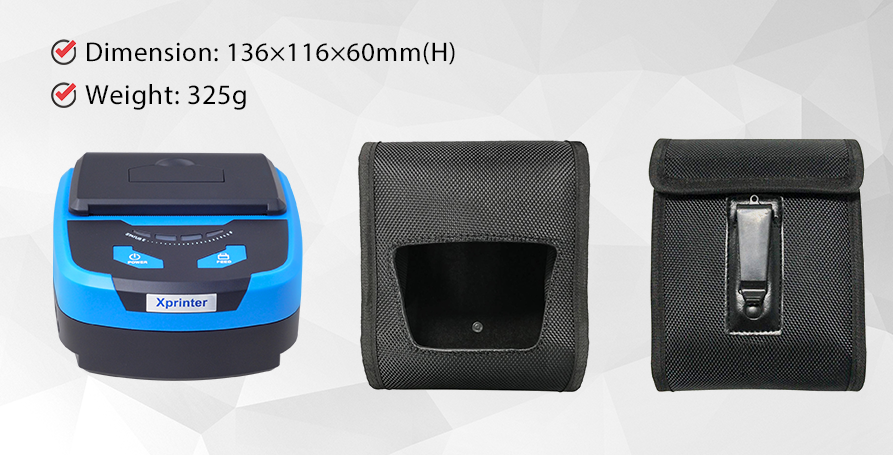

Dimensions	136×116×60mm（D×W×H）
Environmental Requirements
Operation environment	0～45℃, 10～80% RH
Storage environment	-10～60℃, 10～90% RH（no condensation）
Buffer
Input buffer	32k bytes
NV Flash	64k bytes
Software
Emulation	ESC/POS
Driver	Windows/Linux/Android/Mac
Utility	Windows & Linux test Utility
SDK	iOS/Android/Windows
