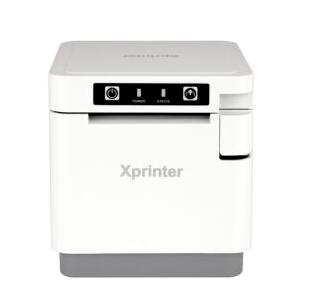

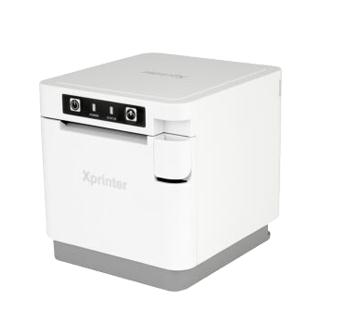

C590H

Product Specification

Model	XP-C590H
Printing Features
Printing method	Direct thermal
Paper width	57.5±0.5mm
Print width	48 mm
Column capacity	384 dots/line
Print speed	120 mm/s
Interface	USB / USB+Bluetooth / USB+Lan
Line spacing	3.75mm (Adjustable by commands)
Fonts Symbology
Character size	Afont A: 12x24, Font B: 9x17, CHN: 24*24
Barcode types	UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128 / QR code
Extended character sheet	PC347(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / PC858 / IranII / Latvian / Arabic / PT151(1251）
Input buffer	USB/USB+BT: 128 Kbytes \| USB+Lan: 256 Kbytes
NV Flash	1M bytes
Power
Power adaptor	AC 100V/240V, 50～60Hz
Power source	DC 9V / 2A
Cash drawer	DC 12V / 1A
Physical characteristics
Weight	0.7kg
Dimensions	120 ×110 × 113mm
Environmental Conditions
Operation environment	Temperature (0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～90%)
Physical Reliability
Printer head life	50KM
Software
Emulation	ESC/POS
Driver	Windows/JPOS/Linux/Android/Mac
SDK	iOS / Android / Windows
