P301G

Product Overview




Support both receipt printing and label printing	Support NFC function
Support QR code and PDF417	70mm/s print speed

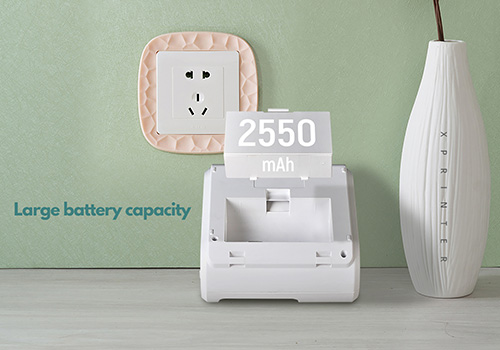

2550mAh battery life longer than other products

Product Specification

Printer Model	XP-P301G
Print mode	Label print mode	Receipt print mode
Printing method	Direct Thermal
Resolution	203 DPI	384 dots/line
Max.print speed	70 mm/s Max.	70 mm/s
Max.print width	20~72 mm	72 mm
Storage	CPU RAM:512K / FLASH:8MB

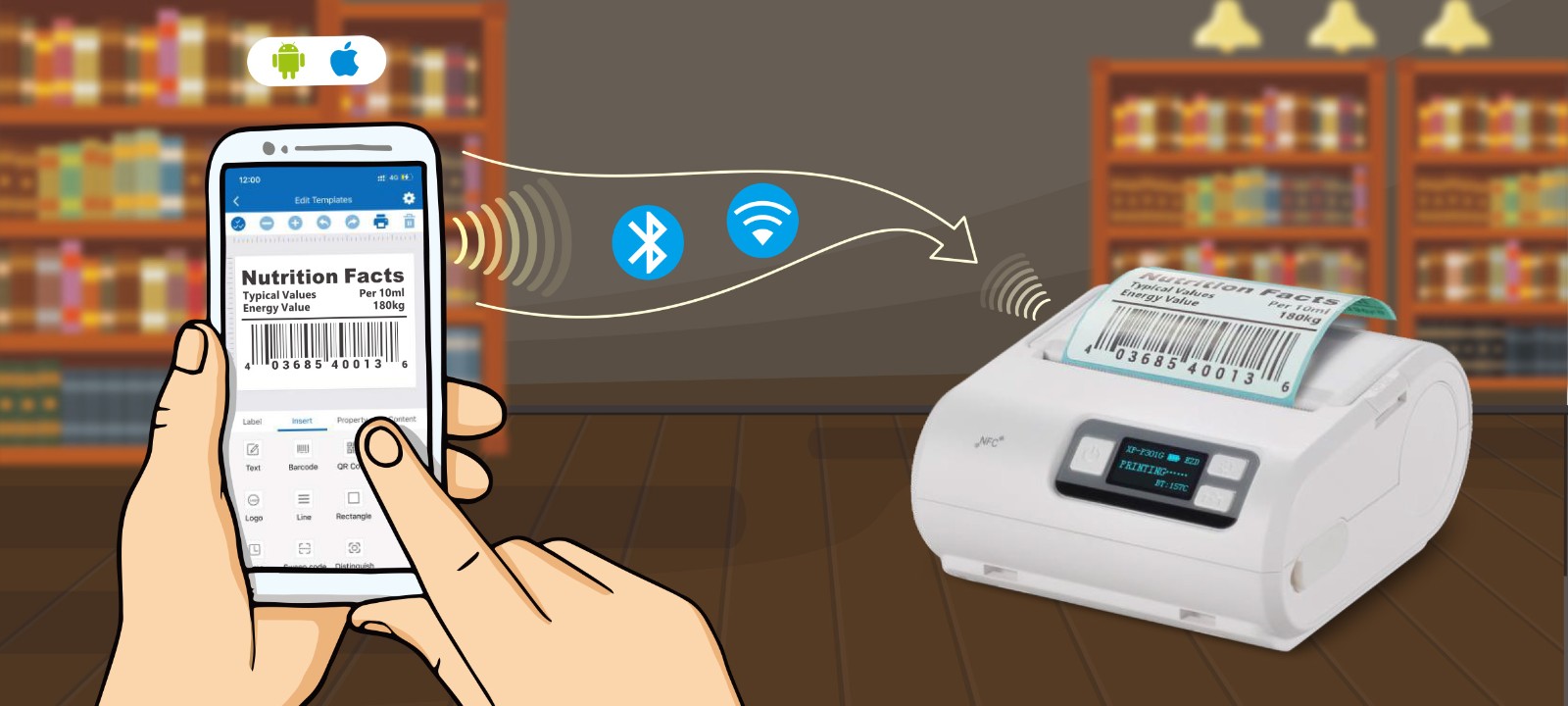

Interfaces	USB+Bluetooth
Print head temperature detection	Thermistor
Print head position detection	Micro Switch
Paper detection	Photoelectric sensor
Media
Media type	Thermal roll paper, thermal adhesive paper	Thermal paper
Media width	20~80mm	80 mm
Media roll diameter	Max.50 mm
Paper exit method	Tearing off
Fonts/Graphics/Symbologies
1D barcode	CODE128 / EAN128 / ITF / CODE39 / CODE39C / CODE39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 / EAN8 / EAN8+2 / EAN8+5 / CODABAR / POSTNET / UPC-A / UPCA+2 /UPCA+5/ UPCE / UPCE+2 / UPCE+5 / MSI / MSIC / PLESSEY /ITF14 / EAN14	UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / CODE39 / ITF / CODABAR / CODE93 / CODE128
2D barcode	QR code / PDF-417
Character sizes	Character set Common single-byte fonts:FONT 0~FONT 8	ASCII Code, FontA:12x24 dot, FontB:9x17 dot, GB18030/BIG5/KSC5601, simplified/traditional, Chinese:24*24 dot
Physical Features

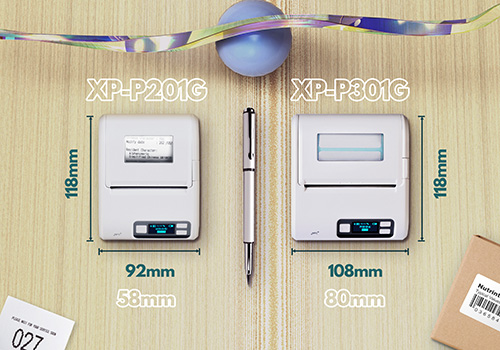

Dimension	11810860mm
Weight	0.38 kg
Operation	-10~55 ℃, Humidity: RH 20 ~ 85%
Storage environment	-40～55 ℃, Humidity: ≤93% RH

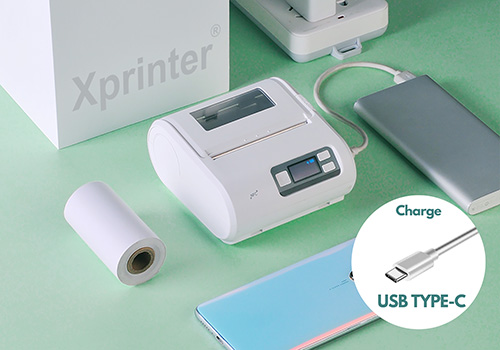

Power Input	DC 5V / 2A
Battery	DC 7.2V / 2550mAh

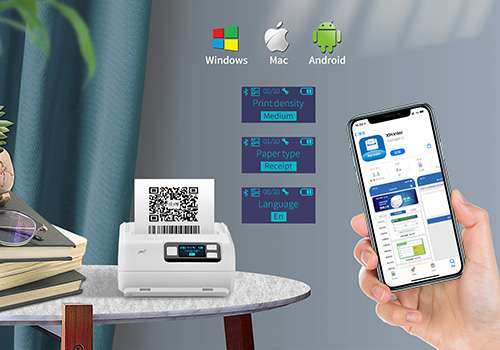

Operating system	WINDOWS / Android / IOS / Linux
