Product Overview

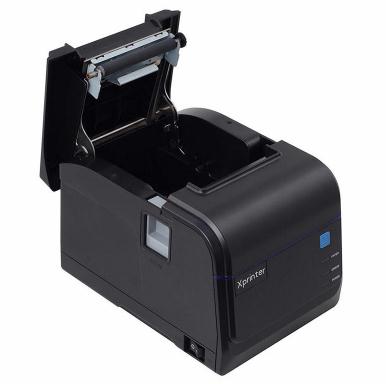

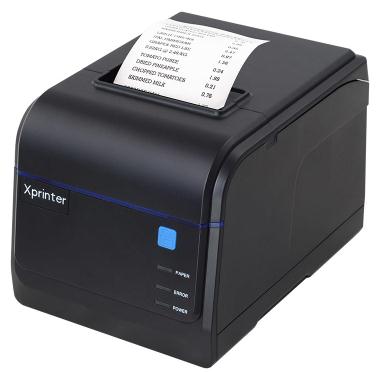

XP-A260N, 80mm thermal receipt printer, wall mount capable, with easy drop-in paper loading, compatible with OPOS driver, intelligent cutter control system.
| ● New sleek shell design | ● Flexibility interface solutions:USB/Lan/USB+Bluetooth/USB+WIFI |

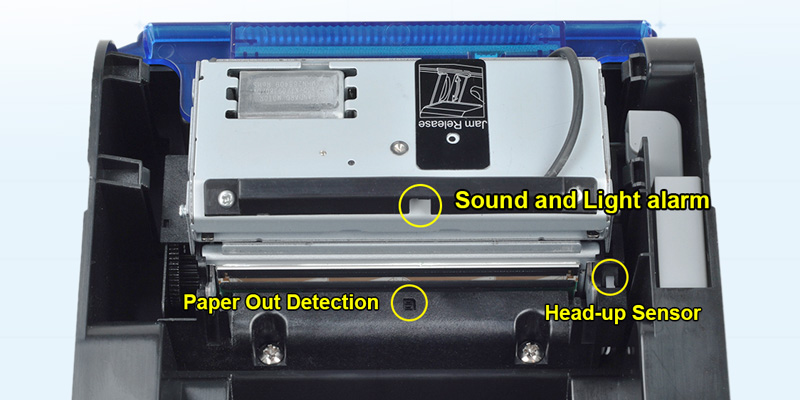

| ● Sound and light alert | ● Wall mount capable |
Product Specification
| Model | XP-A260N |
| Printing | |
| Printing method | Direct thermal |
| Paper width | 79.5±0.5mm |
| Print width | 72mm |
| Column capacity | 576 dots/line(adjustable by command) |
| Printing speed | 260 mm/s Max. |
| Interface | USB/Lan （Optional : WIFI/Bluetooth) |
| Line spacing | 3.75mm (Adjustable by commands) |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） |
| Cutter | |
| Auto cutter | Partial |
| Barcode Character | |
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 |
| 2D Barcode | / |
| Input buffer | 64 Kbytes |
| NV Flash | 256 Kbytes |
| Power | |
| Power adaptor | Input：AC 110V~240V, 50～60Hz |
| Printer input | DC 24V/2.5A |
| Cash drawer output | DC 24V/1A |
| Physical characteristics | |
| Weight | 1.29 KG |
| Dimensions | 200*145*133mm(D*W*H) |
| Environmental Requirements | |
| Operation environment | Temperature (0～45℃) humidity(10～80%) |
| Storage environment | Temperature(-10～60℃) humidity(10～80%) |
| Reliability | |
| Cutter life | 1.5 million cuts |
| Printer head life | 150 KM |
| Software | |
| Emulation | ESC/POS |
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS |
| Utility | Windows & Linux test Utility |
| SDK | iOS/Android/Windows |
