  • Brand name: Xprinter
    Place of Origin: China
    Model Number: XP-V323H / XP-V330H
    Material: ABS
    Certification: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
    OEM Availability: Yes
    Payment Term: T/T, L/C
  • EMAIL   INQUIRY

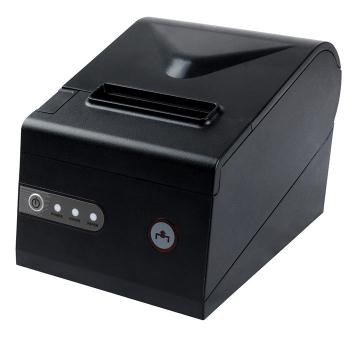

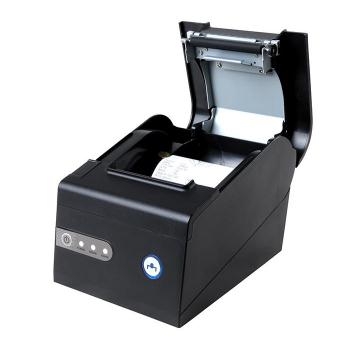

Product Overview





  • XP-V323H/330H is an economic model with multiple interfaces, compatible with OPOS driver, intelligent cutter control system, compatible with Microsoft POS for .NET v1.14

●  Printing speed 300mm/s Max.●  ESC/POS compatible, setting DIP switch to choose characters and fonts.
●  Better sealing performance for mechanism and printer, Mechanism life can reach to 150 km and Auto cutter life with 1.5 million cuts.




Specification

ModelXP-V323HXP-V330H
Printing
Printing methodDirect thermal
Paper width79.5±0.5mm
Print width72 mm72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity576 dots/line(adjustable by command)
Printing speed230 mm/s Max.300 mm/s Max.
InterfaceUSB+Serial/LanUSB+Serial+Lan
Line spacing3.75mm (Adjustable by commands)

Column number

80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/
Chinese,traditional Chinese - 21 columns or 24 columns

Character size

ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots)
Cutter
Auto cutterPartial
Barcode Character
Extension character
sheet
PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251)
Barcode typesUPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D BarcodeUnvailable
QR Code / PDF417
Input buffer64 Kbytes2048 Kbytes
NV Flash256 Kbytes256 Kbytes
Power
Power adaptor

Input:AC110V-240V、50~60Hz

Output:  DC 24V/2.5A

Printer inputDC 24V/2.5A
Cash drawer DC 24V/1A
Physical characteristics
Weight1.56 KG
Dimensions200×145×137mm ( D×W×H)
Environmental Requirements
Operation environmentTemperature :0~45℃  humidity:RH 10~80%
Storage environmentTemperature: -10~60℃ humidity: RH 10~90%
Reliability
Cutter life1.5 million cuts
Printer head life150 KM
Software
Emulation
ESC/POS
Driver

Windows/JPOS/OPOS/Linux/Android/Mac

UtilityWindows & Linux test Utility
SDKiOS/Android/Windows
