Product Overview
XP-A260M / A300M, 80mm thermal receipt printer is an economic model with multiple interfaces, wall mount capable, compatible with OPOS driver, intelligent cutter control system, compatible with Microsoft POS for .NET v1.14
| ● Fast and versatile printing | ● Drop in paper loading with auto cutter |

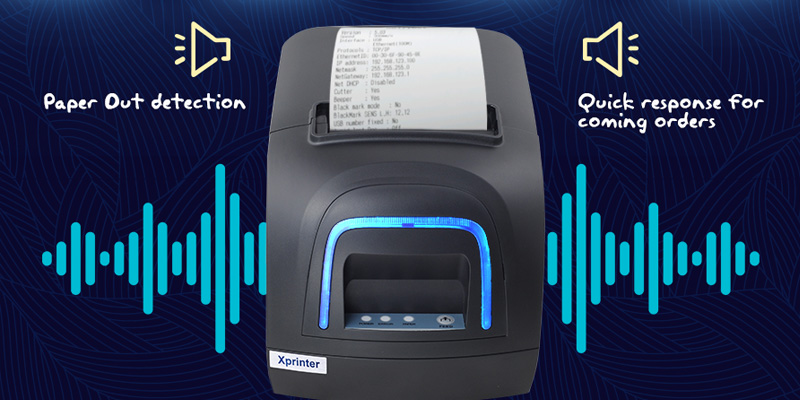

| ● Multi-interface design to meet different user requirements | ● Support audible alarm |
Specification
| Model | XP-A260M | XP-A300M |
| Printing | ||
| Printing method | Direct thermal | |
| Paper width | 79.5±0.5mm | |
| Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | |
| Column capacity | 576 dots/line(adjustable by command) | |
| Printing speed | 260 mm/s Max. | 300 mm/s Max. |

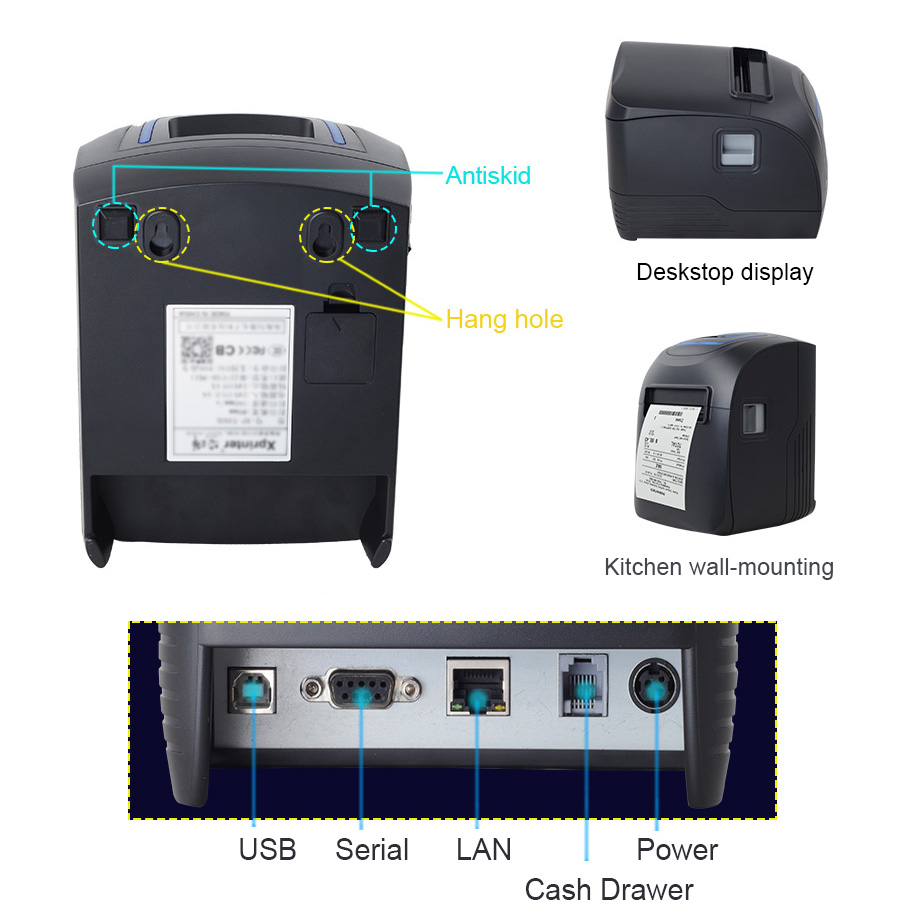

| Interface | USB+Serial+Lan | USB+Serial+Lan |
| Line spacing | 3.75mm (Adjustable by commands) | |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns | |
Character size | ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots） | |
| Cutter | ||
| Auto cutter | Partial | |
| Barcode Character | ||
| Extension character sheet | PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | |
| Barcode types | UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 | |
| 2D Barcode | QR Code / PDF417 | |
| Input buffer | 128 Kbytes | 2048 Kbytes |
| NV Flash | 256 Kbytes | 256 Kbytes |
| Power | ||
| Power adaptor | Input：AC 110V/240V、50~60Hz Output: DC 24V/2.5A | |
| Printer input | DC 24V/2.5A | |
| Cash drawer output | DC 24V/1A | |
| Physical characteristics | ||
| Weight | 1.03 KG | |
| Dimensions | 195 ×140×137.5 mm (D×W×H) | |
| Environmental Requirements | ||
| Work environment | Temperature (0～45℃) humidity(10～80%) | |
| Storage environment | Temperature(-10～60℃) humidity(10～80%) | |
| Reliability | ||
| Cutter life | 1.5 million cuts | |
| Printer head life | 150 KM | |
| Software | ||
| Emulation | ESC/POS | |
| Driver | Windows/JPOS/Linux/Android/Mac/OPOS | |
| Utility | Windows & Linux test Utility | |
| SDK | iOS/Android/Windows | |
