Thermal Receipt Printers > 80mm Thermal Printer >

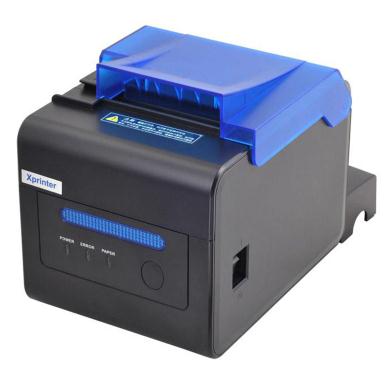

T300L

Brand name: Xprinter
Place of Origin: China
Model Number: XP- T300L
Material: ABS
MOQ :500pcs
Certification: CCC, CE, FCC, RoHS, KC, SAA, BIS, BSMI
OEM Availability :Yes
Payment Term: T/T, L/C
EMAIL INQUIRY

Product Overview

XP-T300L is new generation of receipt printer, waterproof, oilproof and dustproof design. With auto cutter and compatible with several operation systems.

● Water proof, oil proof, dust proof design	● ESC/POS(compatible(including code page)
● Led light and sound alarm	● Wall mountable design

Specification

Printing	XP-T230L	XP-T300L
Printing method	Direct thermal
Print width	72 mm	58mm/80mm
Column capacity	576 dots/line
Printing speed	230mm/s Max.	300mm/s Max.
Interface	USB+Lan （Optional : WIFI/Bluetooth)	USB+Serial+Lan
Printing paper	79.5±0.5mm×φ80mm
Line spacing	3.75mm (Adjustable by commands)
Column number	80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Cutter
Auto cutter	Partial
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 /
	T230L: void	T300L: QR CODE / PDF417
Buffer
Input buffer	64k bytes	2048k bytes
NV Flash	256k bytes
Power
Power adaptor	Input：AC 110V/220V, 50～60Hz
Power source	Output：DC 24V/2.5A
Cash drawer output	DC 24V/1A
Physical characteristics
Weight	1.78KG
Dimensions	198×148×138mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～80%)
Reliability
Cutter life	1.5 million cuts
Printer head life	150 KM
