T260L

Product Overview

XP-T260L is an economic model with multiple interfaces, wall mount capable, compatible with OPOS driver, intelligent cutter control system, compatible with Microsoft POS for .NET v1.14

● Printing speed 300mm/s Max.	● USB+3USB HUBl+Lan

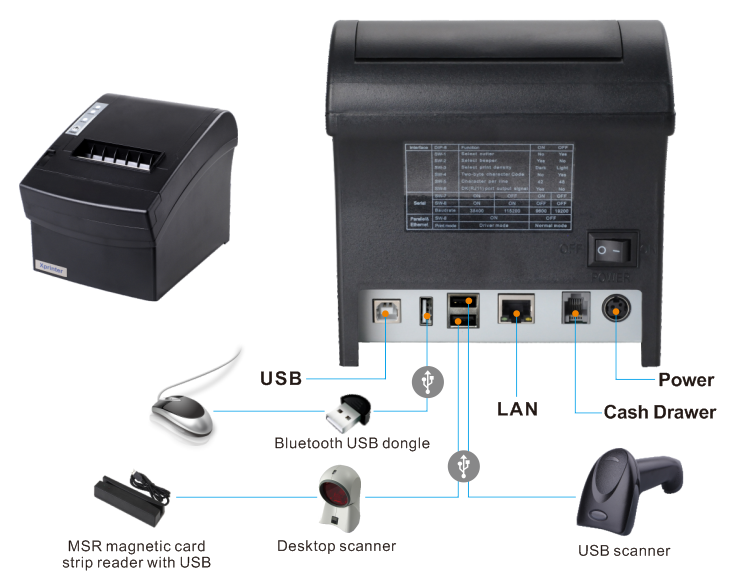

● Support up to three USB devices connection(Maximum operating power 5V, 500mA for each connection), such as Desktop scanner, USB scanner, MSR magnetic card strip reader with USB, keyboard, Bluetooth USB dongle etc
● Set up printer by web page directly	● Printer status monitoring
● Input buffer 2048K bytes	● Support QR code printing

Specification

Printing
Printing method	Direct thermal
Print width	72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm
Column capacity	576 dots/line or 512 dots/line
Printing speed	300mm/s Max.
Interface	USB+3USB HUB+Lan
Printing paper	79.5±0.5mm
Line spacing	3.75mm (Adjustable by commands)
Column number	80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Cutter
Auto cutter	Partial
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D code	QR Code / PDF417
Buffer
Input buffer	2048k bytes
NV Flash	256k bytes
Power
Power adaptor	Input：AC 110V/220V, 50～60Hz Output：DC 24V/2.5A
Printer input	DC 24V/2.5A
Cash drawer	DC 24V/1A
Physical characteristics
Weight	1.65 KG
Dimensions	188×145×148mm ( D×W×H)
Environmental Requirements
Work environment	Temperature (0～45) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～80%)
Reliability
Cutter life	1.5 million cuts
Printer head life	150 KM
