Product Overview

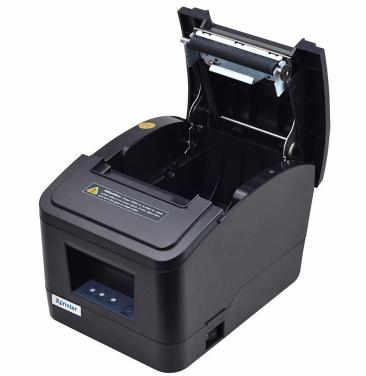

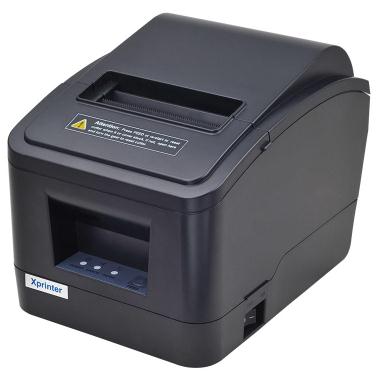

XP-V320N/ XP-V330N, square receipt printer with fashion design, wireless interfaces available, support cutter auto calibration function, cutter life upgrade to 1.5 million, supports firmware update online(Availabel in interfaces :USB+LAN /USB+Serial+Lan), compatible with ESC/ POS.
● Wireless port available | ● Wall mount capable |
● Cutter life upgrade to 1.5 million | ● Support cutter auto calibration function |
● Support firmware update online(USB+LAN only) |
Product Specification
Model | XP-V320N | XP-V330N |
Printing | ||
Printing method | Direct thermal | |

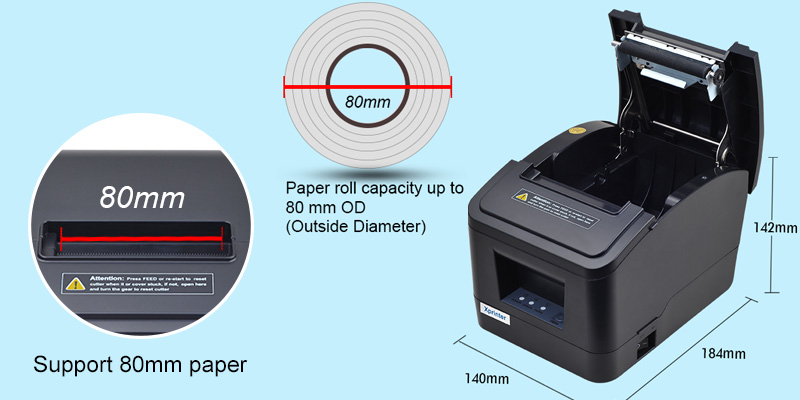

Paper width | 79.5±0.5mm | |
Print width | 72mm/ 76mm/ 80mm/ 64mm/ 48mm/ 52mm | |
Column capacity | 576 dots/line | |
Printing speed | 200 mm/s Max. | 260 mm/s Max. |
Interface | USB+Lan / USB+Serial / USB (Optional:Bluetooth/WIFI) | USB+Serial+Lan |
Line spacing | 3.75mm (Adjustable by commands) | |
Column number | 80mm paper: Font A - 42 columns or 48 columns/Font B - 56 columns or 64 columns/ Chinese,traditional Chinese - 21 columns or 24 columns | |
Character size | ANK,Font A:1.5×3.0mm(12×24 dots) Font B:1.1×2.1mm(9×17 dots) Chinese,traditional Chinese:3.0×3.0mm(24×24 dots) | |
Cutter | ||
Auto cutter | Partial | |
Barcode Character | ||
Extension character sheet | PC347(Standard Europe)、Katakana、PC850(Multilingual)、PC860(Portuguese)、PC863(Canadian-French)、PC865(Nordic)、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866(Cyrillic#2)、PC852(Latin2)、PC858、IranII、Latvian、Arabic、PT151(1251) | |
Barcode types | UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128 | |
2D Barcode | QR CODE / PDF417 (Available in USB+Lan) | QR CODE / PDF417 (Available in USB+Serial+Lan) |
Input buffer | 64 Kbytes / 128 Kbytes | |
NV Flash | 256 Kbytes | |
Power | ||
Power adaptor | Input: AC 100-240V, 50~60Hz Output: DC 24V/2.5A | |
Printer input | DC 24V/2.5A | |
Cash drawer output | DC 24V/1A | |
Physical characteristics | ||
Weight | 1.02 KG | |
Dimensions | 184 ×140×142 mm (D×W×H) | |
Environmental Requirements | ||
Operation environment | Temperature 0~45℃ humidity:10~80% RH | |
Storage environment | Temperature -10~60℃ humidity:10~90% RH | |
Reliability | ||
Cutter life | 1.5 million cuts | |
Printer head life | 150 km | |
Software | ||
Emulation | ESC/POS | |
Driver | Windows/JPOS/OPOS/Linux/Android/Mac | |
Utility | Windows & Linux test Utility | |
SDK | iOS/Android/Windows |
