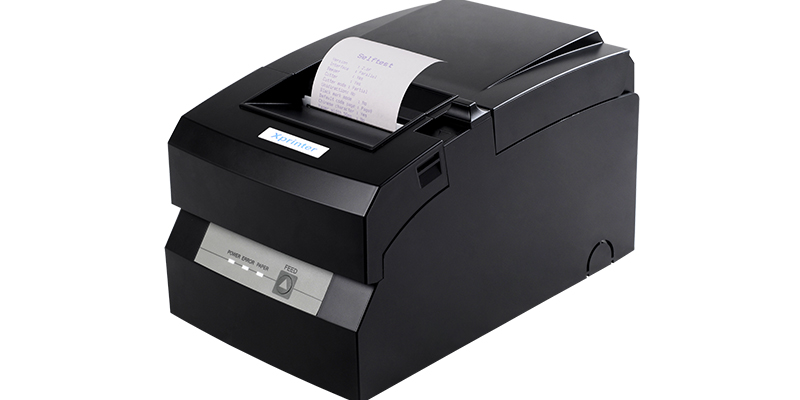

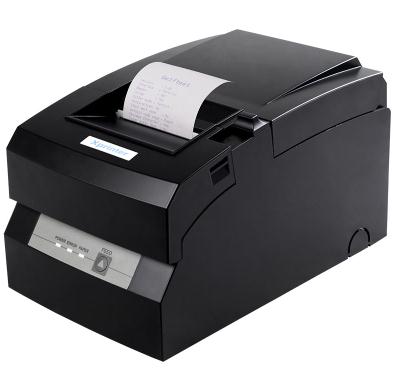

D76EC

Product Overview

part.1

Printing speed 4.5 line/s MAX.

part.2

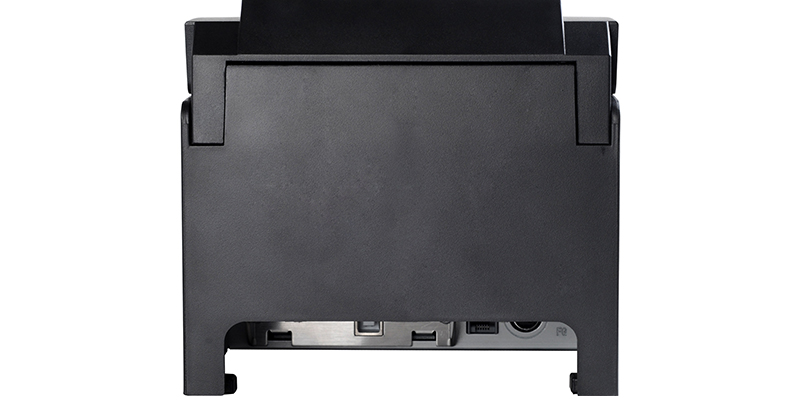

Serial+Lan+USB

part.3

100MB Ethernet interface connection, transfer data efficiently

part.4

Avoid order missing

part.5

Black mark orientation

part.6

Imported Citizen DP332 printing head

part.7

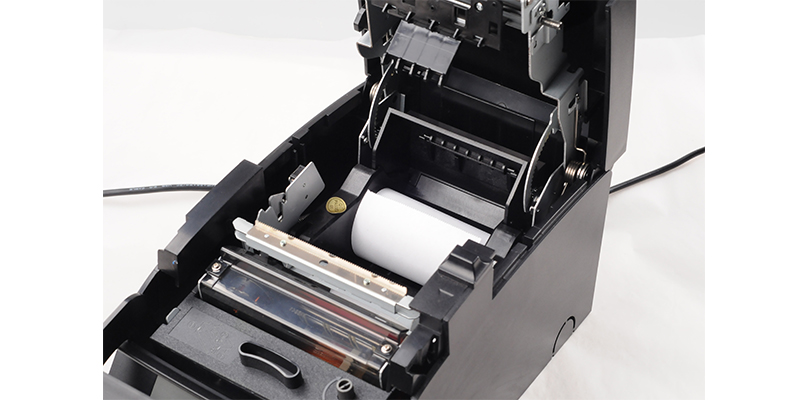

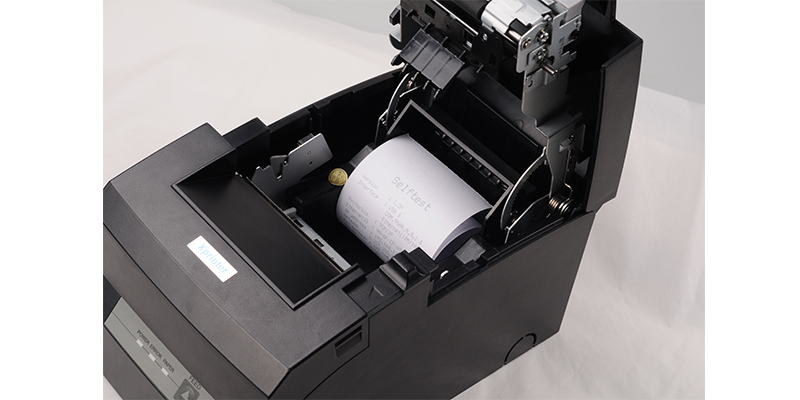

Easy paper loading design

part.8

Support cover open detection

Product Specification

Printing
Printing method	9-Pin serial impact dot-matrix printing
Printing width	63.5mm
Print Resolution	72 dpi (Horizontal)/ 144 dpi (Vertical)
Printing speed	4.5 line/s Max.
Interface	Serial+USB+Lan
Printing paper	75.5±0.5mm×φ80mm(max)
Character size	ANK，Font A: 1.6×3.1mm（9×9 matrix） Font B: 1.2×3.1mm（7×9 matrix）Chinese,traditional Chinese: 2.7×2.7mm（16×16 matrix）
Column number	Font A - 33 columns /Font B - 40 columns / Chinese, traditional Chinese - 22 columns
Character
Extension character sheet	PC437/Katakana/PC850/PC860/PC863/PC865/WPC1252/PC866/PC852/PC858
Power
Power adaptor	Input：AC 110V/220V, 50～60Hz Output: DC 24V/2.5A
Printer input	DC 24V/2.5A
Cash drawer output	DC 24V/1A
Cutter
Auto cutter	Partial
Software
Driver	Windows /Linux /Mac
Utility	Windows
SDK	Windows/ Android
Physical characteristics
Gross weight	2.2 KG
Dimensions	247×156×143mm (D×W×H)
Environmental Requirements
Operation environment	0～45℃, 10～80% RH
Storage environment	-10～60℃, 10～90% RH（no condensation）
Reliability
Cutter life	1million cuts
Printer head life	10 Million Lines
