  • P801A
  • P801A

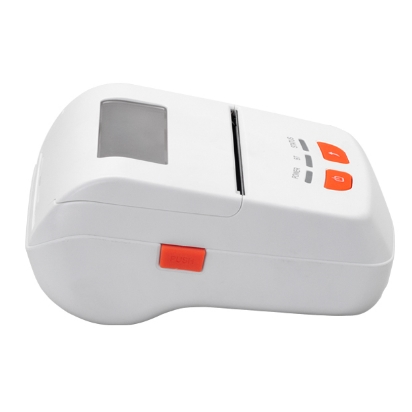

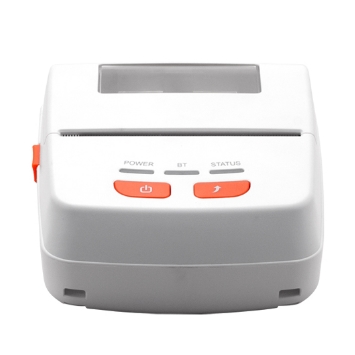

P801A P801A

P801A

  • Brand name: Xprinter
    Place of Origin: China
    Model Number: XP-P801A
    Material: ABS
    Certification: CCC,CE,FCC,RoHS,KC,SAA,BIS,BSMI
    OEM Availability: Yes
    Payment Term: T/T, L/C
  • EMAIL   INQUIRY

Product Overview



1.Optional Color: Black or Withe2.Support missing paper alarm function
3.Support QR CODE4.70mm/s print speed


Product Specification


ModelXP-P801A
Printing Features
Printing methodDirect thermal
Resolution203 DPI
Line spacing3.75mm (Adjustable by commands)
Print width72 mm
Print speed70 mm/s
Paper width80 mm
Media roll diameter50mm
Performance Features
InterfacesUSB+Bluetooth(1+1)
Input buffer128 Kbytes
NV Flash

4M Kbytes

Emulation

ESC/POS

Fonts/Graphics/Symbologies
Character sizeANK,Font A:1.5×3.0mm(12×24 dots)Font B:1.1×2.1mm(9×17 dots) simplified/traditional Chinese:3.0×3.0mm(24×24 dots)
Barcode types

1D:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/CODABAR/CODE93/CODE128
2D:QRCODE

Extended character sheet

PC347(Standard Europe) / Katakana / PC850(Multilingual) / PC860(Portuguese) / PC863(Canadian-French) / PC865(Nordic) / West Europe / Greek / Hebrew / East Europe / Iran / WPC1252 / PC866(Cyrillic#2) / PC852(Latin2) / PC858 / IranII / Latvian / Arabic / PT151(1251)
Physical Features
Dimension135*105*61.5mm (L*W*H)
Weight0.3 kg
Compatible systems
SystemsWindows/Android/iOS/Linux
Power supply
Battery7.4V/ 2000mAh
Charging inputDC 5V/2A
Environmental Conditions
Operation environment0~45℃,10~80%RH  no condensing
Storage environment-10~60 ℃,≤10~90% RH  no condensing
