P3301B

Product Overview

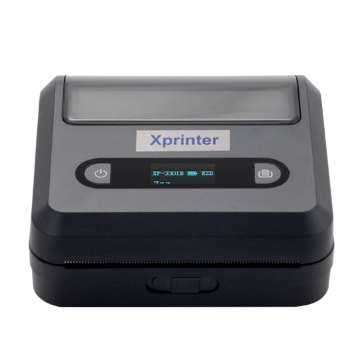

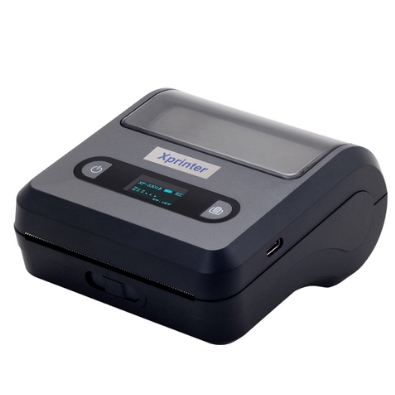

XP-P3301B is a powerful mobile label printer coming with

70 mm/s Max. fast print speed, extremely compact size for

easy-to-take with you.Equipped with OLED, printing status

and settings are visualized.With bluetooth as standard,

you can use the printer at a greater distance.

In addition,Max. anti-dropping distance is 1.5 meters, making it the perfect printer to reduce accidental damage.

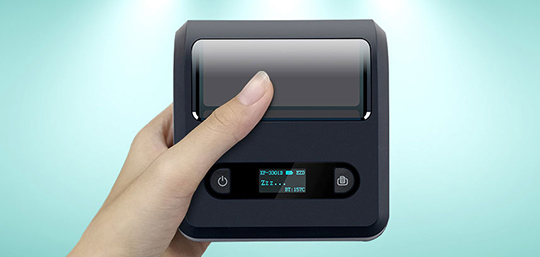

Easy-to-take

High speed printer：70 mm/s Max.

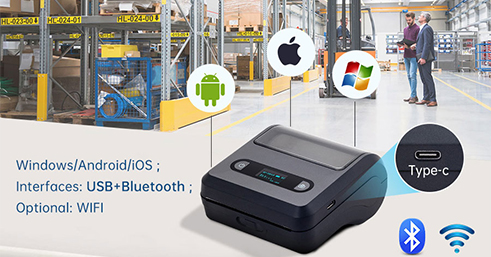

Strong Connectivities: Type-C, Bluetooth, WIFI

Great compatibility: Windows/ Android/ iOS

Matte black stylish design

Product Specification

Model	XP-P3301B
Printing Features
Printing method	Direct thermal
Resolution	203 DPI
Print width	Max.72 mm (2.8")
Max.print speed	Max.70 mm/s (2.7"/s)
Max.print length	1778 mm (70")
Media
Media type	Continuous,Gap, Black mark
Media width	40 mm～80 mm
Media external diameter	50 mm
Media thickness	0.06 mm- 0.15 mm
Performance Features
Processor	32-bit CPU
Memory	8MB Flash Memory/ 8MB SDRAM
Interface	USB+Bluetooth Optional:USB+WIFI
Screen	OLED (0.96") Resolution:128*64 pix
Sensor	① Gap sensor ② Cover opening sensor ③ Black mark sensor
Fonts/Graphics/Symbologies
Character	Font 0 to Font8
1D bar code	Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST
2D bar code	PDF-417, Maxicode, DataMatrix, QR code,Aztec
Rotation	0°、90°、180°、270°
Emulaion	TSPL、CPCL、DPL、EPL、ZPL、ESC/POS
Physical Features
Dimension	110.5×106×58mm (D×W×H)
Weight	286g
Software
Driver	WINDOWS/ Android/ IOS
Power supply
Battery	7.4V/1600mAh
Charging input	Standard USB cable charging: 5V / 2A
Environmental Conditions
Operation environment	-10 ~ 50°C（14~122°F），Humidity: 25 ~ 85% no condensing
Storage environment	-40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
