P501A

Product Overview

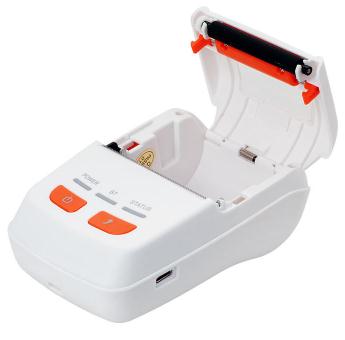

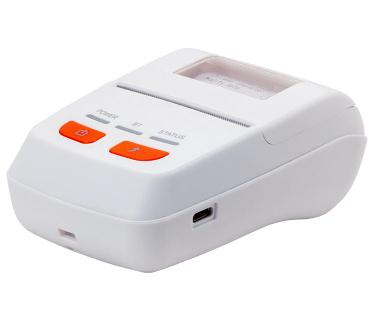

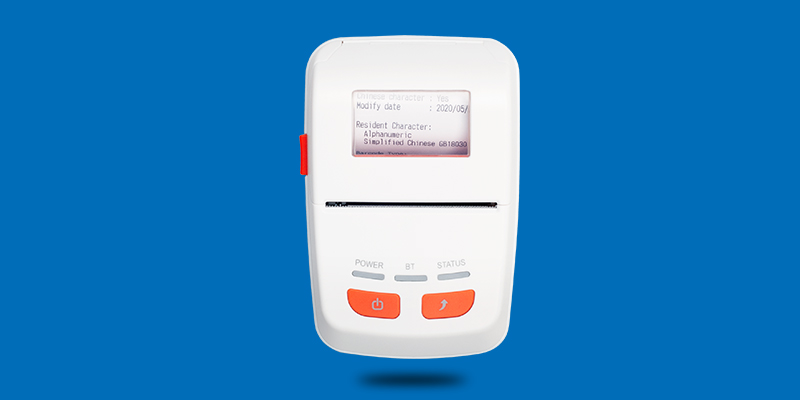

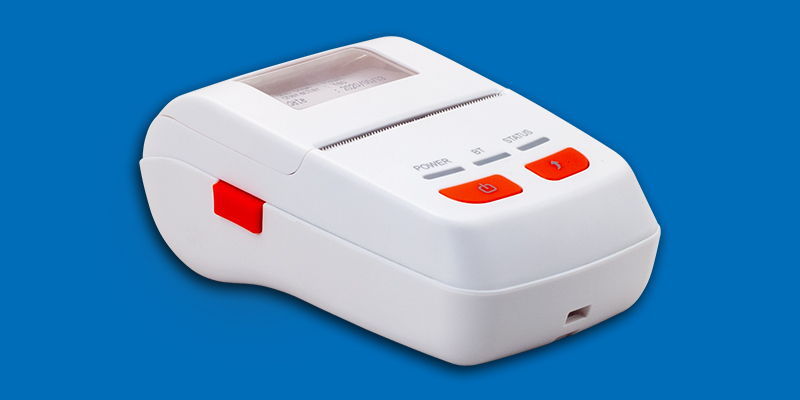

XP-P501A is a powerful 2-inch ticket printer coming with 70 mm/s Max.

fast print speed, extremely compact size for easy-to-take with you.

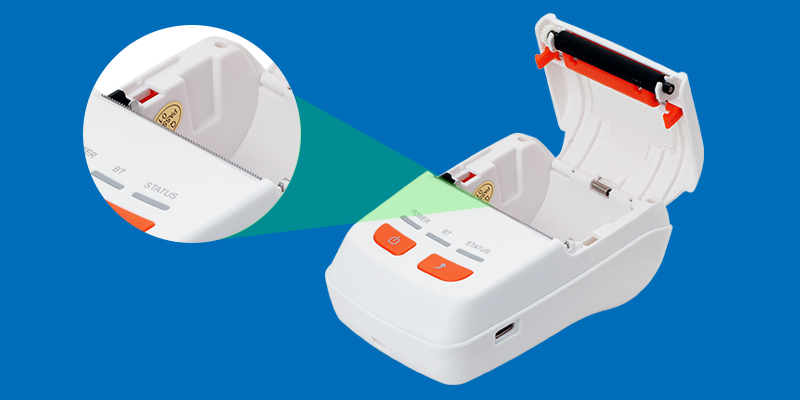

Equipped with sharp and durable gear to help you tear every printed ticket quickly and neatly

Main Features:

1.Multiple 1D barcode printing

2.QRCODE 2D barcode printing

3.NV LOGO download picture printing (picture format : BMP)

4.Compatible with Windows/Android/ iOS systems

5.Paper out alarm

6.Multiple languages available: Simplified Chinese, Traditional Chinese, Korean, Japanese and 19 international languages

Product Specification

Model	XP-P501A
Printing Features
Printing method	Direct thermal
Resolution	203 DPI
Line spacing	3.75mm (Adjustable by commands)
Print width	48 mm
Max.print speed	Max. 70 mm/s
Paper width	58 mm
Paper roll diameter	40 mm
Performance Features
Interfaces	USB+Bluetooth(1+1)
Input buffer	128 Kbytes
NV Flash	64 Kbytes
Emulation	ESC/POS
Fonts/Graphics/Symbologies
Character size	ANK，Font A：1.5×3.0mm（12×24 dots）Font B：1.1×2.1mm（9×17 dots） simplified/traditional Chinese：3.0×3.0mm（24×24 dots）
Barcode types	1D:UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128 2D:QRCODE
Extended character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、 PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、 IranII、Latvian、Arabic、PT151（1251）
Physical Features
Dimension	1248351mm (LWH)
Weight	0.23 kg
Compatible systems
Systems	Windows/Android/iOS/Mac/Linux
Power supply
Battery	7.4V/ 2000mAh
Charging input	DC 5V/2A
Environmental Conditions
Operation environment	0～45℃，10～80%RH no condensing
Storage environment	-10～60 ℃，≤10~90% RH no condensing
