Q321L

Product Overview

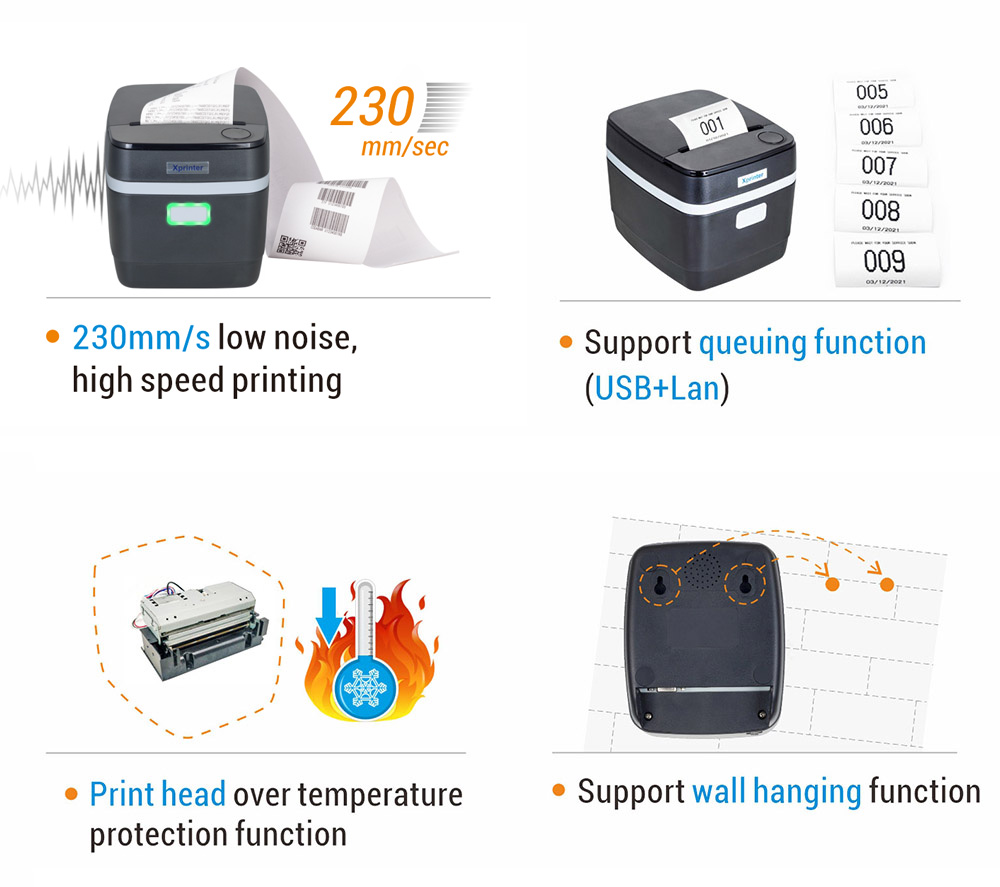

● 230mm/s low noise, high speed printing	● Support queuing function(USB+Lan)
● Print head over temperature protection function

Product Specification

Printing
Printing method	Direct thermal
Media width	79.5±0.5mm / φ 80 mm
Print width	72mm
Column capacity	576 dots/line or 512 dots/line
Printing speed	230mm/s

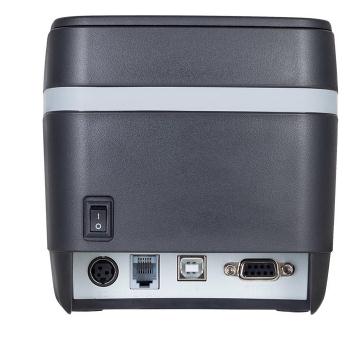

Interface	USB+Serial / USB+Bluetooth / USB+WiFi / USB+Lan
Line spacing	3.75mm (Adjustable by commands)
Character size	ANK，Font A：1.5×3.0mm（12×24 dots） Font B：1.1×2.1mm（9×17 dots） Chinese,traditional Chinese:3.0×3.0mm（24×24 dots）
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
1D Barcode	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode	QR CODE: USB+Lan(Optional for other interface)
Input buffer	128 Kbytes / 256 Kbytes: USB+Lan
NV Flash	256 Kbytes
Power
Power adaptor	Input：AC 100V/240V, 50～60Hz; Output：DC 24V/2.5A
Printer input	DC 24V/2.5A
Cash drawer	DC 24V/1A
Physical characteristics
Weight	0.8 KG
Dimensions	160×133×129mm (D×W×H)
Environmental Requirements
Work environment	Temperature (0～45℃) humidity(10～80%)
Storage environment	Temperature(-10～60℃) humidity(10～90%)
Reliability
Auto cutter	Partial
Cutter life	1.5 million cuts
Printer head life	150 KM
Software
Emulation	ESC / POS
Driver	Windows / Linux / Mac OS / Android
