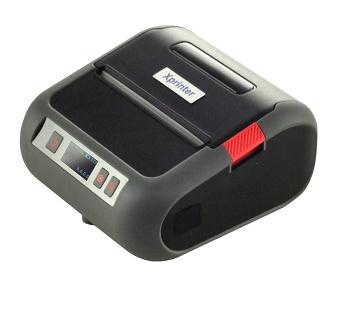

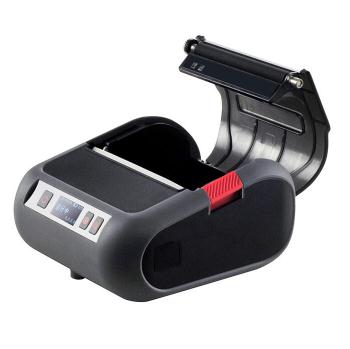

Product Overview
Support direct USB charging | 50mm diameter paper roll |
OLED screen available | TSPL, EPL, ZPL, DPL, CPCL, ESC/POS command compatible |
2500mAh battery life longer than other products |
Product Specification
Model | XP-P322B |
Printing Features | |
Resolution | 203 DPI |
Printing method | Direct Thermal |
Max.print speed | Max. 70mm (2.7") / s |
Max.print width | 72 mm (2.8") |
Max.print length | 1778 mm (70") |
Media | |
Media type | Continuous, gap, black mark |
Media width | 25.4 mm ~ 76 mm |
Media thickness | 0.06 mm ~0.16 mm |
Performance Features | |
Processor | 32-bit CPU |
Memory | 8MB Flash Memory/ 8MB SDRAM |
Interface | Stardard version: USB+Bluetooth Optional:USB+WIFI |
Screen | OLED (0.96") Resolution: 128*64 pix |
Sensors | ①Gap sensor |
Fonts/Graphics/Symbologies | |
Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
1D bar code | Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
2D bar code | PDF-417, Maxicode, DataMatrix, QR code |
Rotation | 0°、90°、180°、270° |
Emulaion | TSPL、EPL、ZPL、DPL、CPCL、ESC/POS |
Physical Features | |
Dimension | 120×112×60mm (D×W×H) |
Weight | 400 g |
Reliability | |
Print head life | 30 km |
Software | |
Operation system | Windows/Android/iOS |
SDK | Windows/Android/iOS |
Power supply | |
USB | DC 5V/2A |
Battery | 2500mAh |
Environmental Conditions | |
Operation environment | 5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% no condensing |
Storage environment | -40 ~ 60°C(-40~140°F),Humidity: 10 ~ 90% no condensing |
