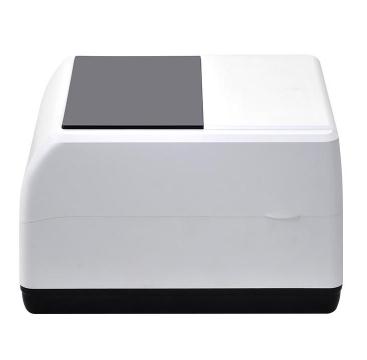

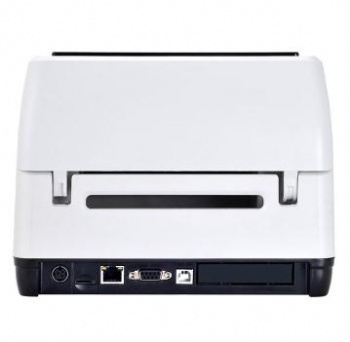

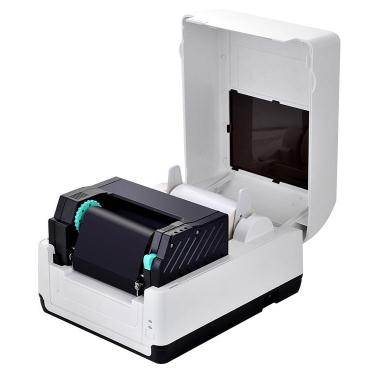

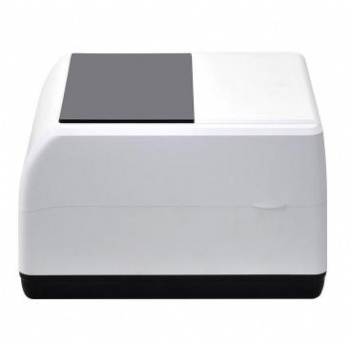

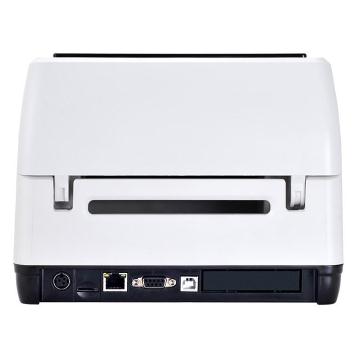

Barcode Label Printer T451B

  • ● Print speed up to 127mm/s
    ● Ribbon roll capacity 300m(Outter roll ribbon)
    ● Support TSPL, EPL, ZPL, DPL commands
    ● Support multiple material printing
  • EMAIL   INQUIRY



Specifications

Printing Features
Resolution203 DPI
Printing methodThermal Transfer / Direct Thermal
Max.print speed127 mm/s Max.
Max.print width104 mm (4.09”)
Max.print length1778 mm (70")
Media
Media typeContinuous, gap, black mark, fan-fold and punched hole
Media width25.4~118mm (1.0”~4.6”)
Media thickness0.06~0.254 mm (2.36~10mil)
Media core diameter25.4 ~ 76.2 mm (1 "~ 3 ")
Label length10 ~ 1778 mm(0.39" ~ 70" )
Label roll capacity127 mm (5“) OD (External diameter)
Ribbon capacityMax.300m
Ribbon width110 mm
Performance Features
Processor32-bit CPU
Memory8MB Flash Memory/8MB SDRAM/Flash memory can be expanded to Max. 4 GB
InterfaceStandard:USB TF card Optional: Lan/WIFI/Bluetooth/Serial
Sensors① Gap sensor
② Cover opening sensor
③ Black mark sensor
④ Ribbon sensor
Fonts/Graphics/Symbologies
Internal fonts8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D barcode

Code 39, Code 93, Code 128UCC, Code 128 ,subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11

2D barcodePDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation
0°、90°、180°、270°
EmulationTSPL、EPL、ZPL、DPL
Physical Features
Dimension282 mm (D) x 232 mm (W) x 171 mm (H)
Weight2.56kg
Reliability
Print head life30 km
Software
DriverWindows/Linux/Mac
SDKWindows/Android/iOS
Power supply
InputAC 110~240V,1.8A, 50-60Hz
OutputDC 24V, 2.5A, 60W
Options
Factory Options① WiFi module         ② RS-232C(2400-115200 bps) communication interface;        ③  Lan         ④ Serial
Dealer Options① External paper roll holder and 1 "paper roll;
② Extension board for external paper roll holder
③ Cutter
④ Peeling machine
Environmental Conditions

Operation environment

5 ~ 40°C(41~104°F),Humidity: 25 ~ 85% non-condensing
Storage environment-40 ~ 60°C(-40~140°F),Humidity:10 ~ 90% non-condensing
