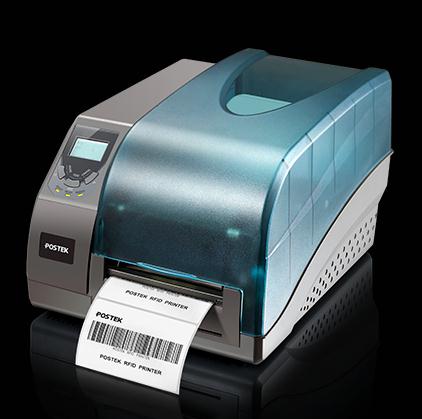

Barcode Printer G3106

Continue the unremitting pursuit of excellence and create a new experience of industrial printers. Although small in size, it has outstanding skills. In all printing tasks, it can meet your needs for more labels and higher quality printing, and reduce your use cost to a lower level.
EMAIL INQUIRY

Leading edge innovation and excellence

Innovation is not always obvious, but if you pay attention, you will find that the G series has a different design.

Exquisite and innovative print module and breakthrough structural design can easily adjust the left and right pressure of the print head and the tension of the carbon belt,

It brings the strong performance and consumables compatibility that only industrial printers used to have.

In the future, it will meet your needs for more labels and higher quality printing in various printing tasks,

Reduce your use cost to a lower level, with superior cost performance.

Printer Model	G-2108	G-3106
Printing Method	Thermal Transfer & Direct Thermal
Resolution	8dot/mm(200dpi)	12dot/mm(300dpi)
Max.Print speed	6ips(152.4mm/sec)	5ips(127mm/sec)
Max.Print width	4.25"(108mm)	4.17"(106mm)
Max.Print Length	315"(8000mm)	157"(4000mm)
Memory	8 MB FLASH ROM，16 MB SDRAM
Label roll capacity	Width: maximum 4.4 ″ (112 mm), minimum 0.98 ″ (25 mm) Outer diameter: 6 ″ (152 mm) maximum; Inner diameter: minimum 1 ″ (25.4 mm)
Mini Label Width	Thermal transfer: paper tearing mode: 0.20 ″ (5 mm) Paper cutting mode: A150/A400: 0.79 ″ (20 mm) Thermal: paper tearing mode: 1.10 ″ (28 mm) Paper cutting mode: A150/A400: 1.54 ″ (39 mm)
Label Thickness	0.003 ″~0.008 ″ (0.08~0.20 mm), including the thickness of backing paper
Ribbon Roll	Width: 4.3 ″ (110 mm) maximum; Length: 984.25 ′ ′ (300 M) max Outer diameter: 2.75 ″ (70 mm) maximum; Inner diameter: 1 ″ (25.4 mm)
Sensors	Gap transmissive sensor (position adjustable) Black Mark reflective sensor (position adjustabel)
Font	Built in five dot matrix Western fonts and 24 dot matrix Chinese Song typeface; Support downloading TrueType fonts
Font	Built in five dot matrix Western fonts and 24 dot matrix Chinese Song typeface; Support downloading TrueType fonts
Barcode	Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128 and so on 1d code MaxiCode, PDF417, Data matrix, QR Code, and so on
Interface	RS-232 serial port, 10/100M adaptive Ethernet port, USB DEVICE 2.0 interface
Weight	3.5kg
Printer size	Width 10.2 ″ (259 mm) × Depth 13.9 ″ (354 mm) × Height 8.1 ″ (205 mm)
Optional accessories	Centronics parallel port (must be configured at the factory) Wi Fi module, Bluetooth module, cutter, external paper holder, external label rewinder Additional cap of paper guide (the narrowest paper guide width is 8 mm)
