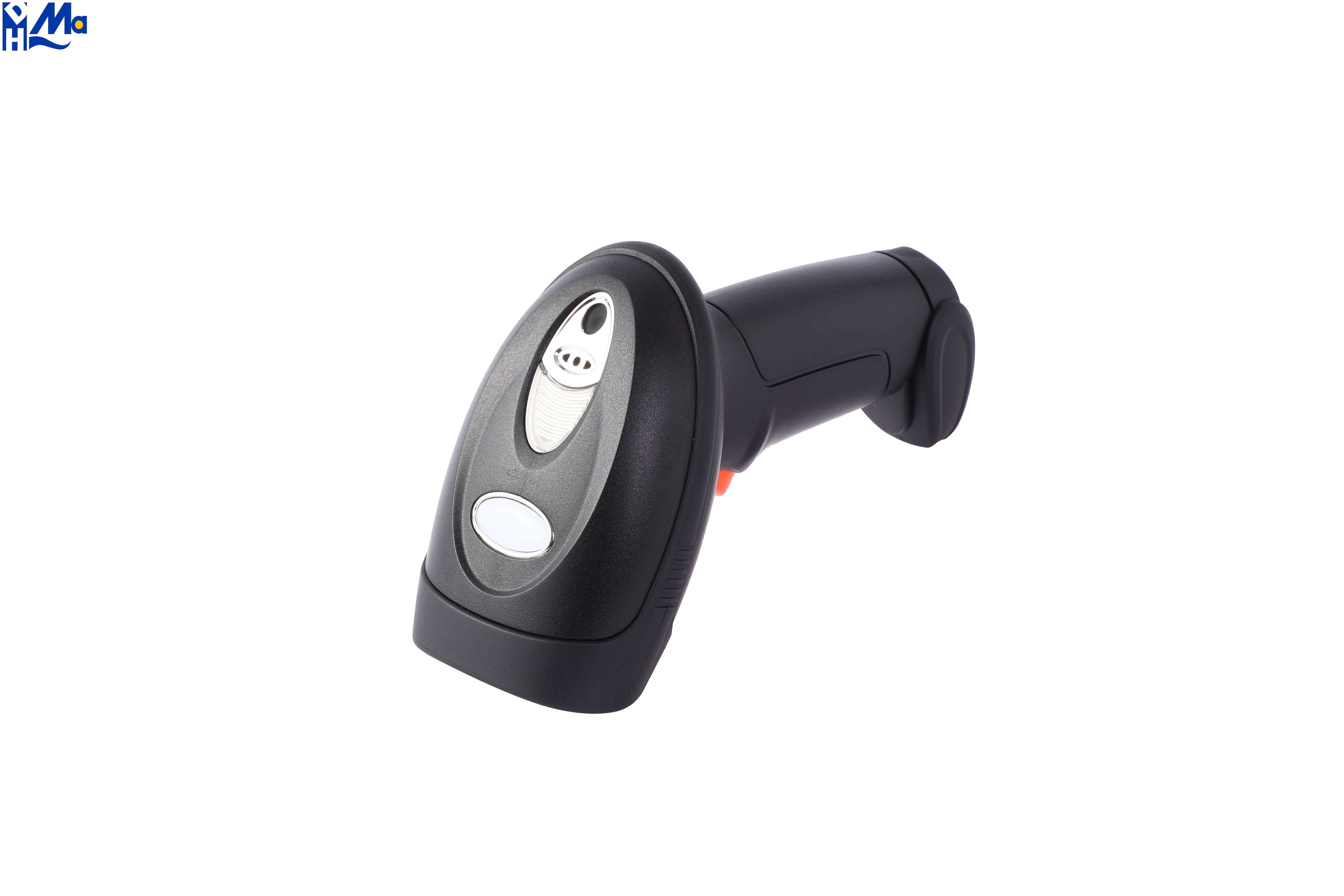

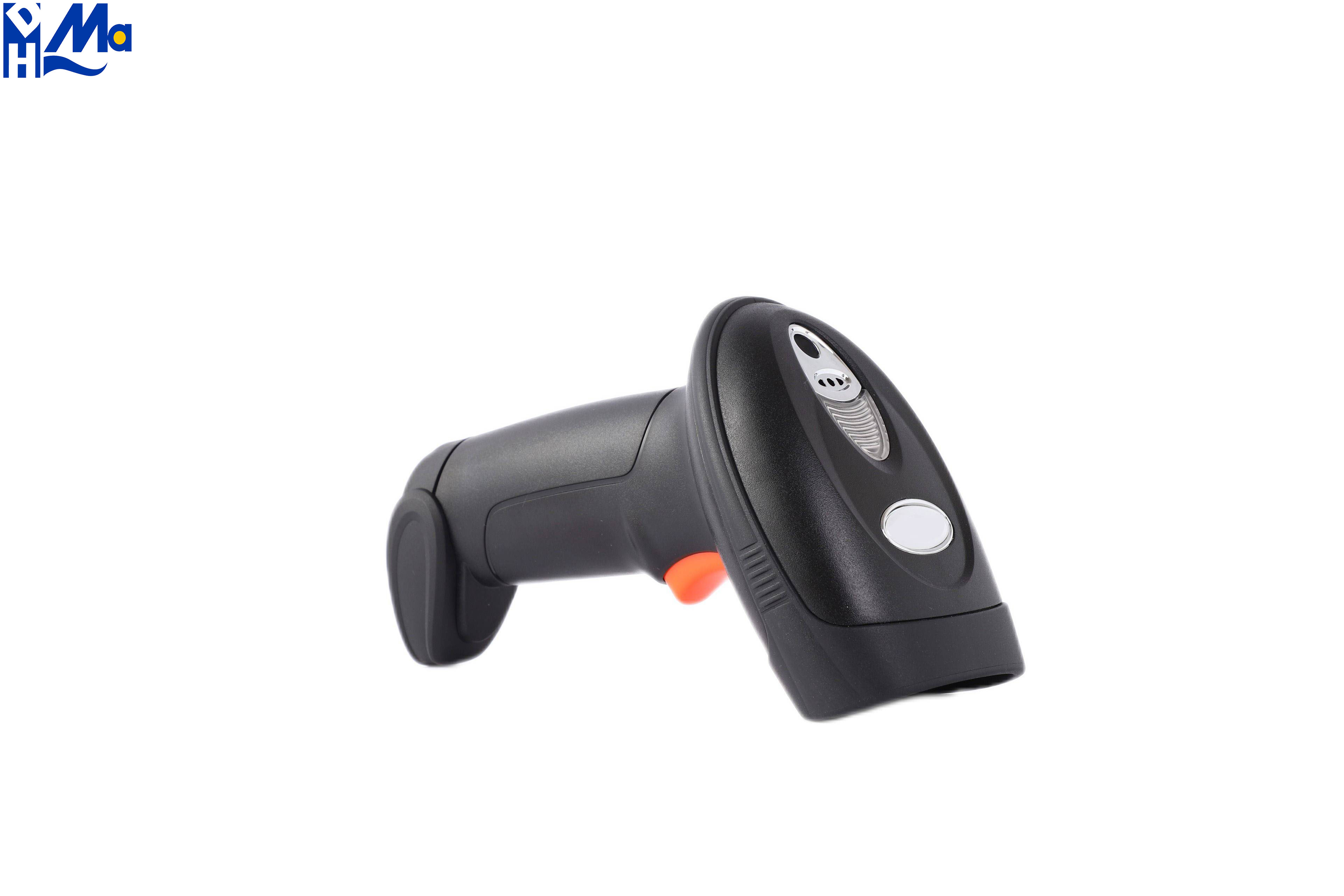

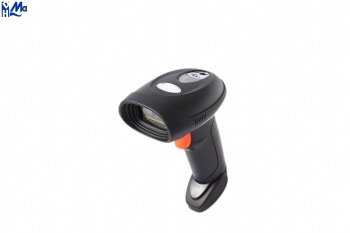

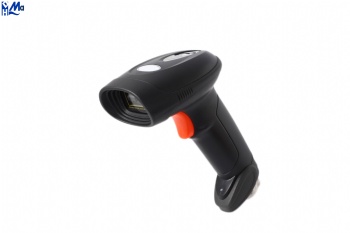

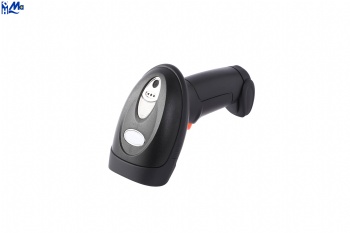

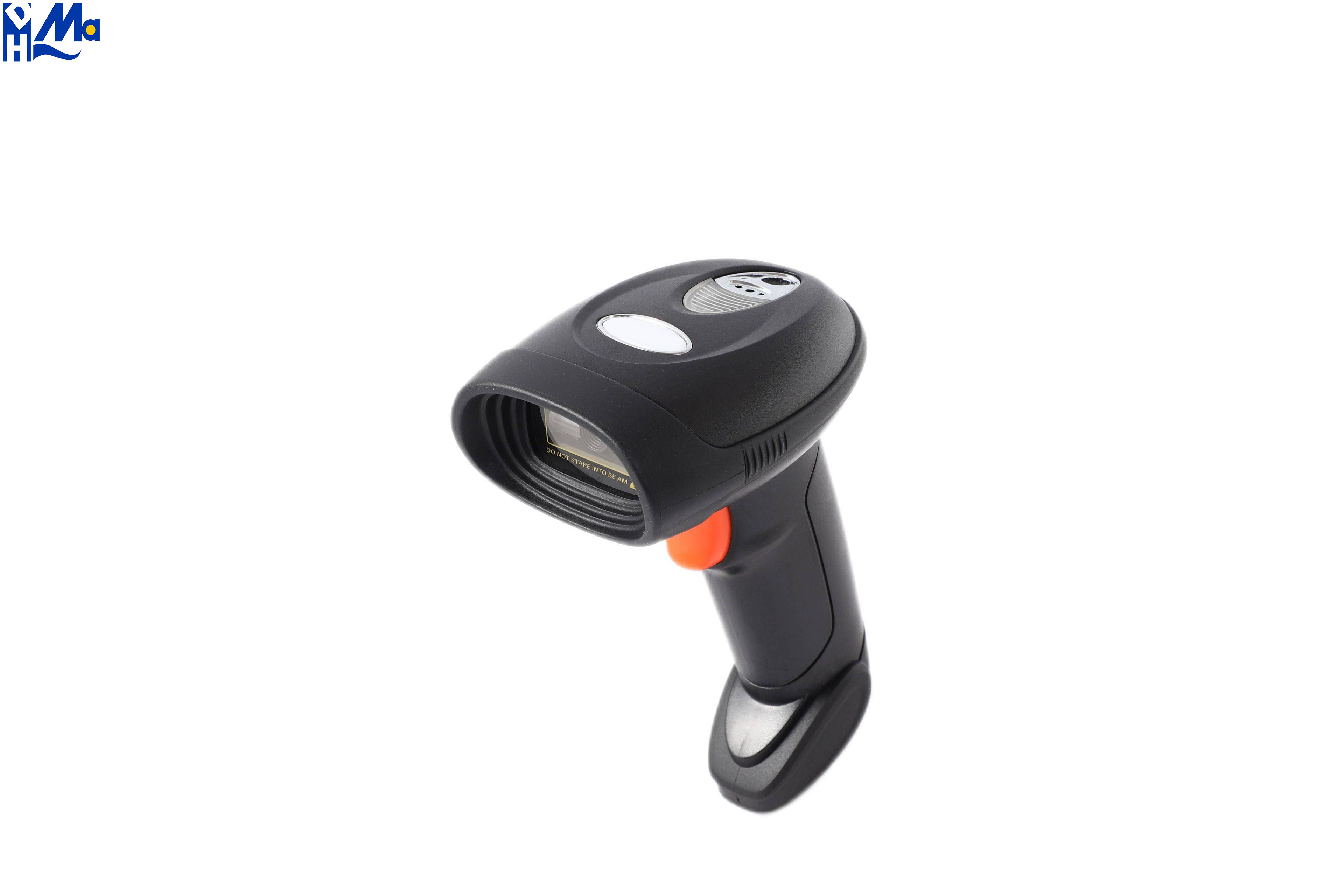

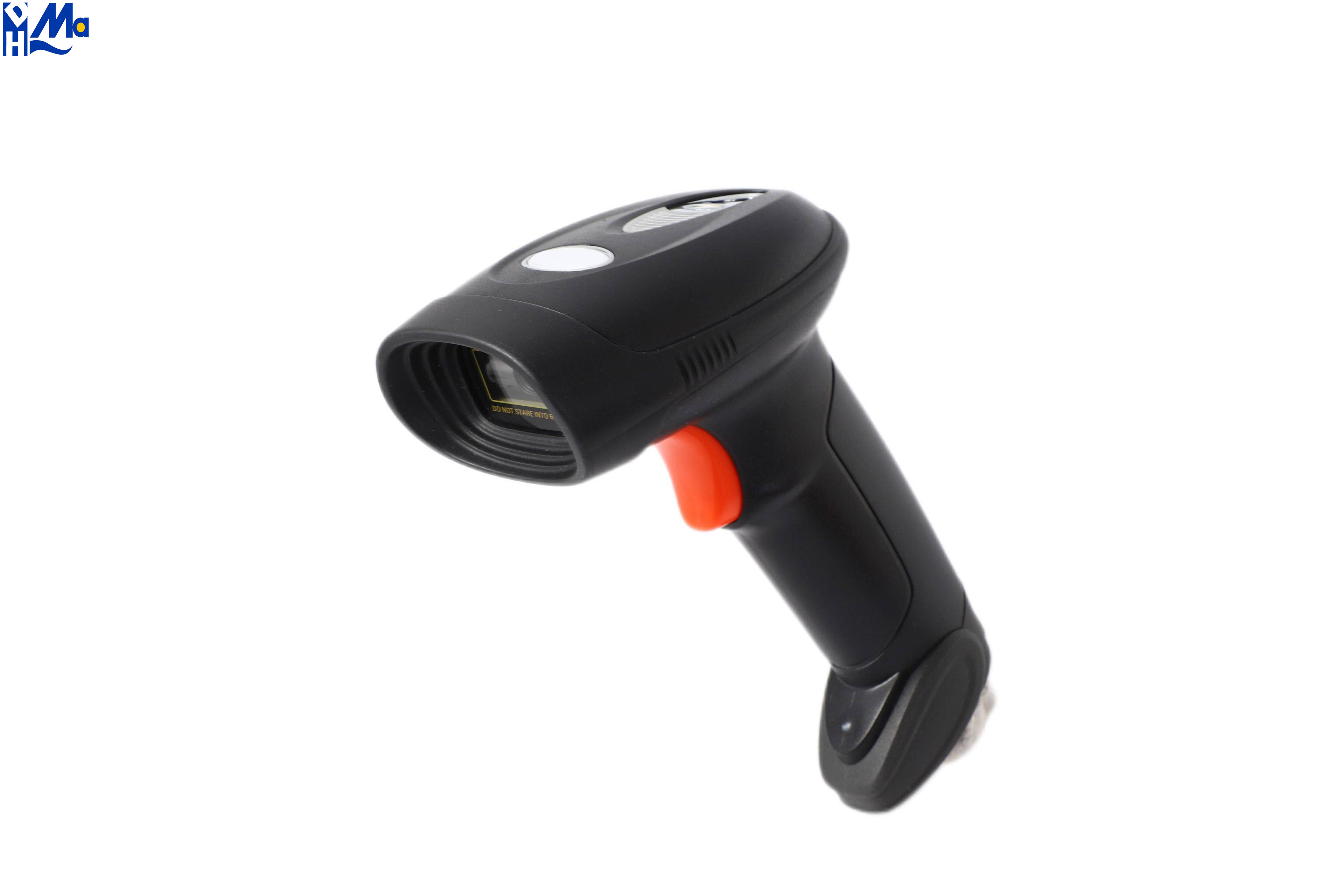

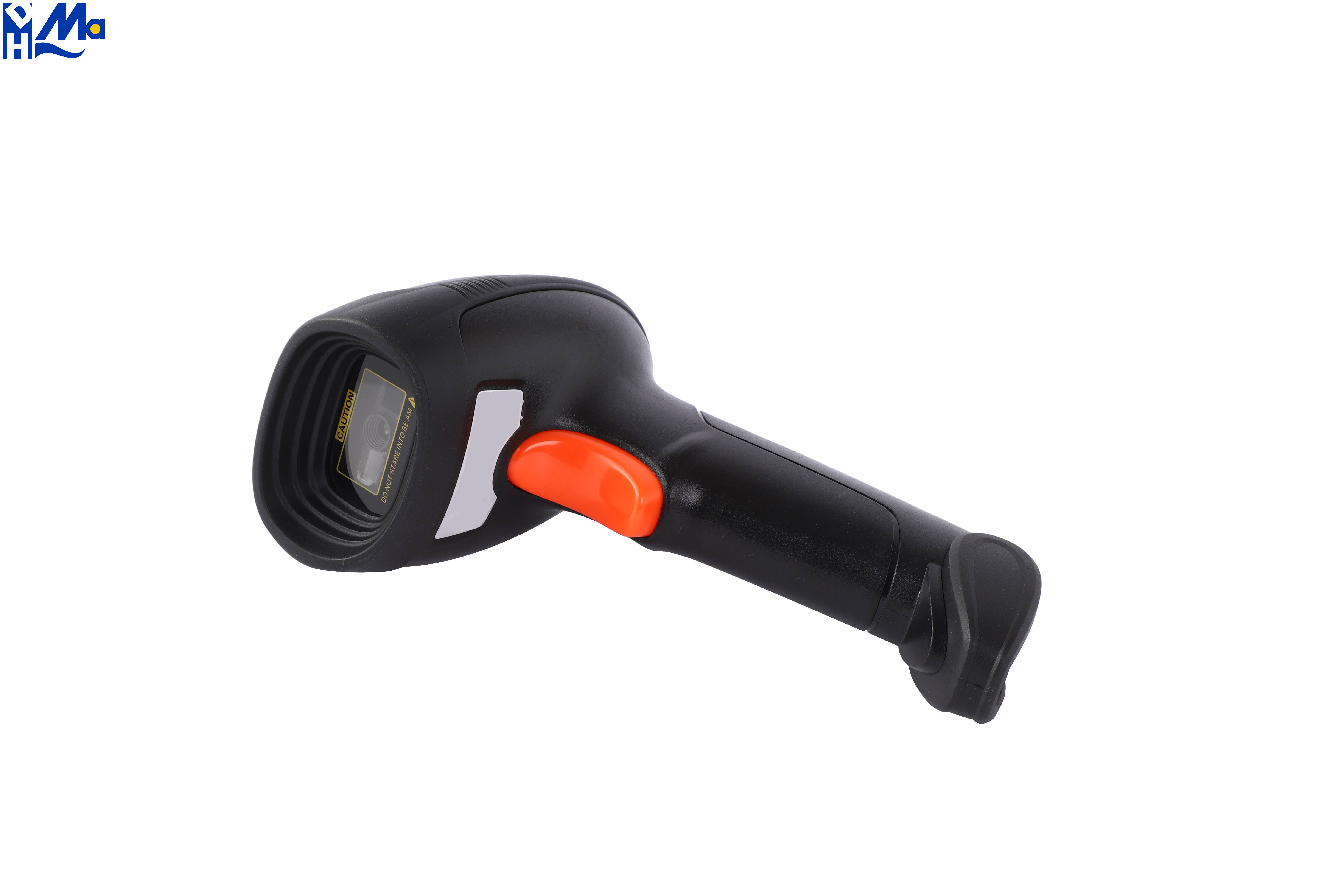

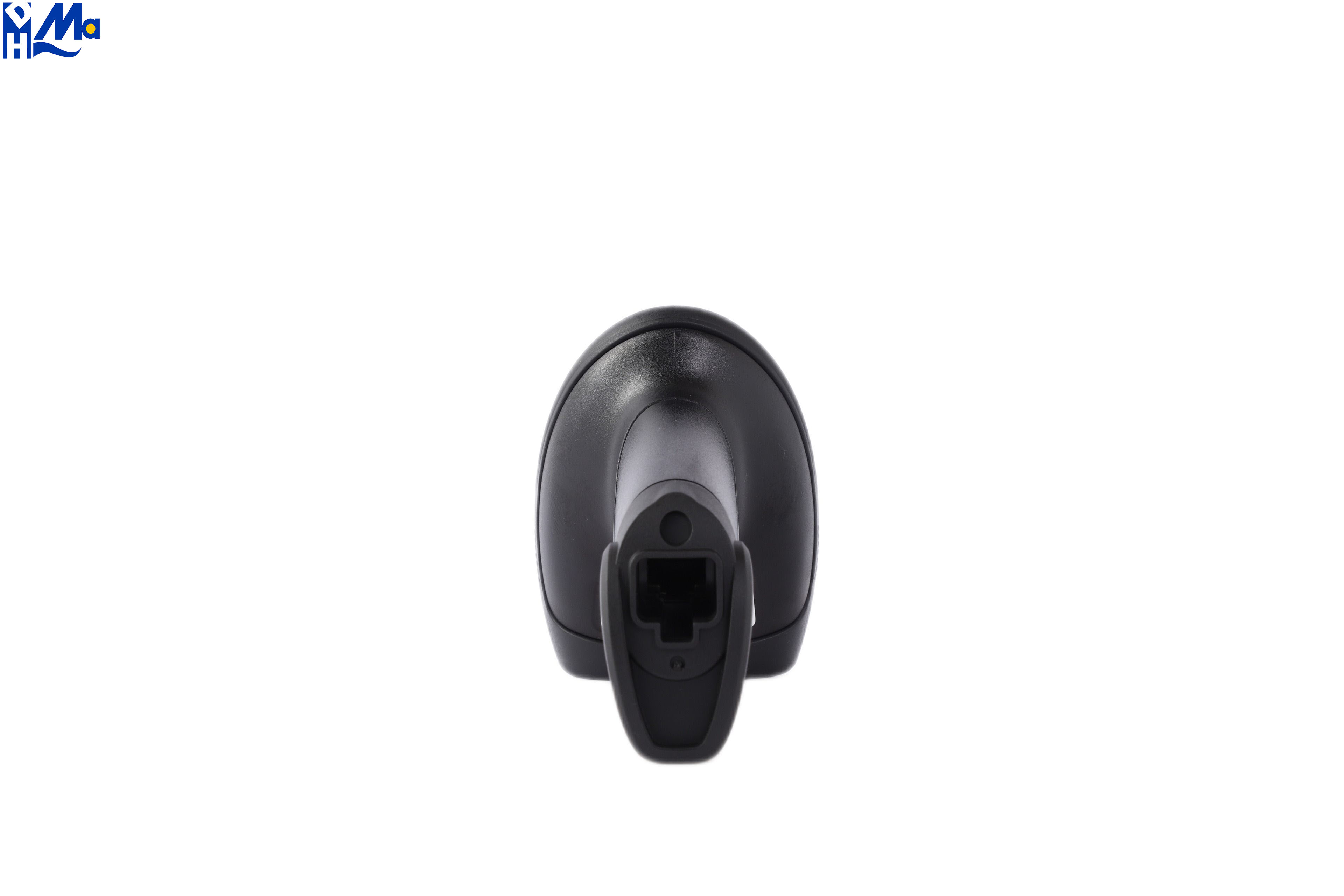

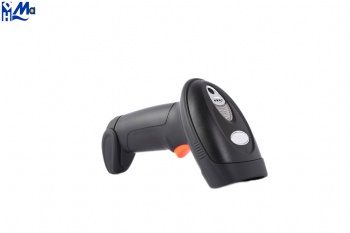

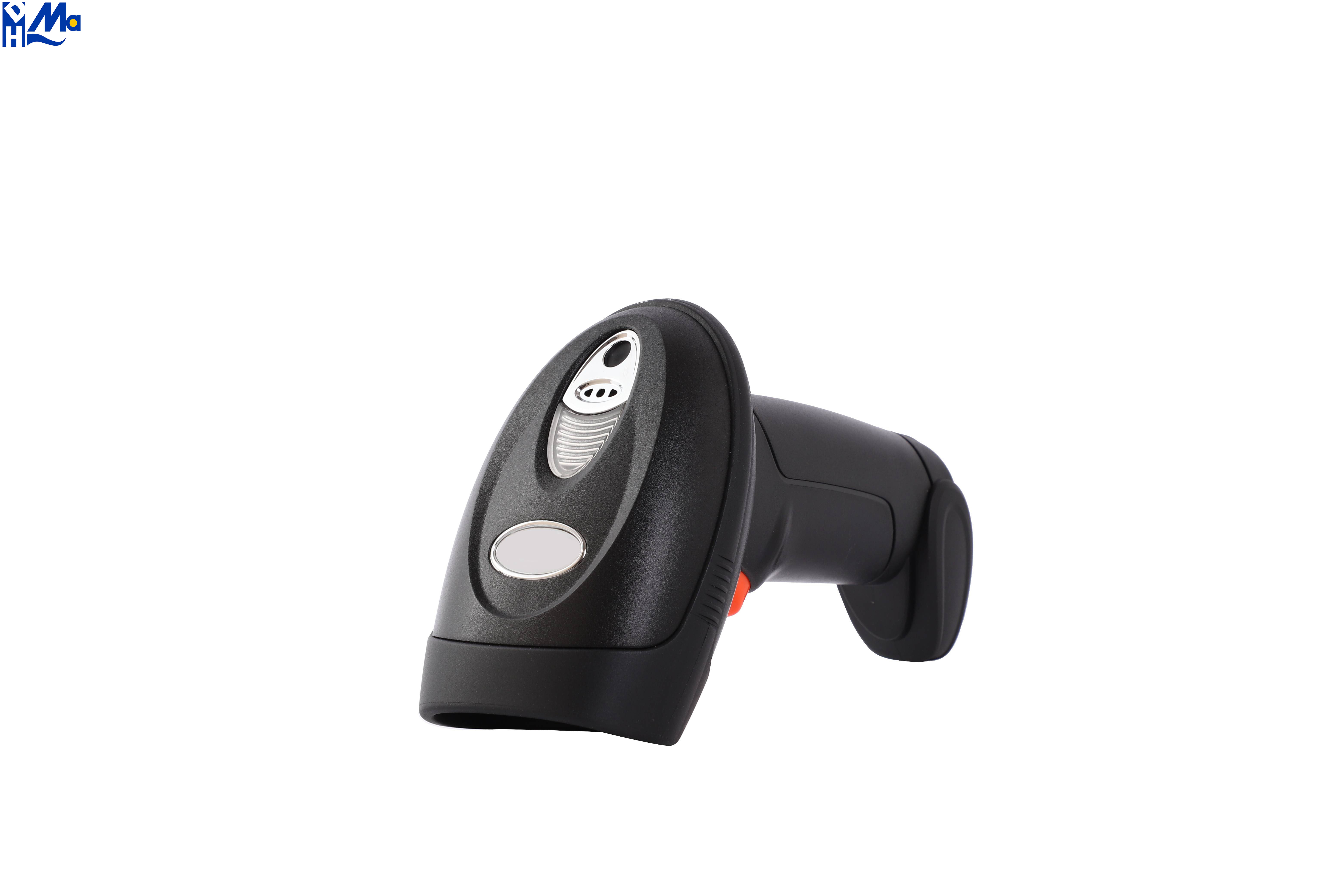

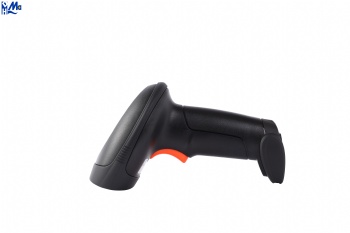

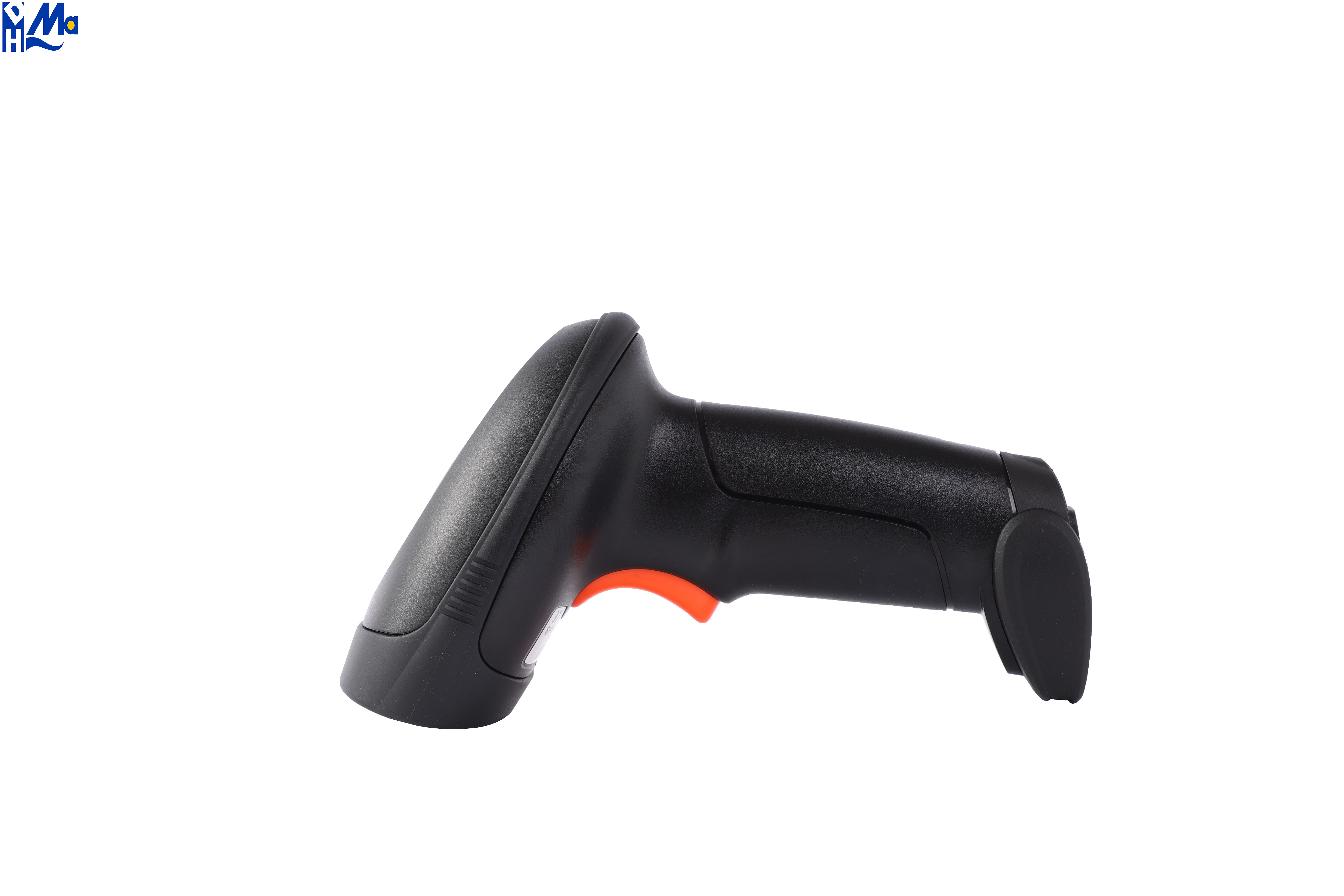

9295-barcode scanner (Scanning Master)

9295-barcode scanner (Scanning Master)
✅Capture any one-dimensional barcode from a distance.
✅Wireless Bluetooth function is faster and more compatible.
✅Better encryption function enhances security.
✅Excellent battery performance increases scanning times.
✅Suitable for harsh environments with high dust and humidity.
✅Can withstand falling from a height of 1.8m.
EMAIL INQUIRY

9295SR Features

l The layered appearance and the mirror design on the top create a new aesthetic experience.

l The new button design with the high-rebound switch components, the handle perfectly fits the palms of different sizes.

l Equipped with the advanced decoding algorithm, easy to read barcode, qr code, DM, PDF417, etc.

l Long depth of field, large field of view, easy to scan long-distance barcode, can read 13mil commodity barcodes at a distance of 450mm, and 3mil low-density barcode also have excellent reading effects;

l For low-contrast barcodes, damaged/wrinkled/irregular/poor printing quality barcodes, it have good reading performance;

l Support many keyboard languages, no need driver, just plug and play, compatible with major operating systems;

l Professional electrostatic protection and anti-interference design, can be used normally in complex electromagnetic environment.

Performance Parameter
Light Source	LED White light
Aiming Light	Green Dot
Image Sensor	1280*800 pixels
CPU	1.2G Dual core
Resolution(maximum)	4mils
Minimum Print Contrast	20% Reflection Difference
Image Field of View	Horizontal: 50°; Vertical: 38°
Reading Angle	Pitch: 0-360°; Roll(Tilt): ±60°; Skew (Yaw): ±60°
Decoding Capability	1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417.
Reading Indicators	LED light&Buzzer(adjustable tone and volume）
Typical depth of Field	Precision Barcode Depth of Field 3.34mil CODE 39 60mm—160mm 3.34mil EAN-13 90mm—150mm 5mil CODE39 70mm—240mm 5mil EAN-13 70mm—230mm 13mil UPC-A 40mm—450mm 5mil PDF417 65mm—210mm 5mil QR 75mm—140mm 10mil QR 45mm—290mm 10mil DM 30mm—260mm 20mil QR 20mm—480mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.)
Electrical Parameter
Current	Working current(Standard): < 280 mA ; Standby current(Standard): < 130 mA
Input Voltage	5 VDC (+/- 10%)/500mA
Environmental Parameter
ESD protection(Air discharge)	15 kV
Drop resistance	Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface.
Temperature	Working: -10 to 50 °C Storage/Transport: -20 to 65 °C
Humidity(non-condensing)	5 - 95%
Ambient light	Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux
Product Size	1726787mm
Interfaces	RS-232; USB HID; USB COM; HID POS available as per customer’s needs
Transmission	Support multi-language transmission, compatible with major operating systems, support the editing of barcode data.
Warranty	18 months
