Thermal Receipt Printer P101

Product Overview

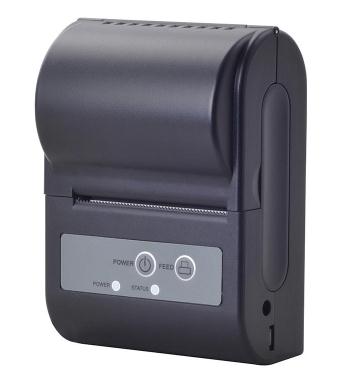

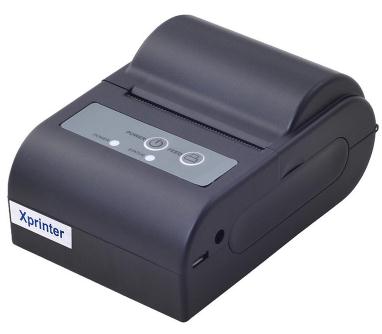

● Xprinter XP-P101 is a receipt printer. It is portable, easy to operate and high speed printing, support GB 18030. The XP-P101 is lightweight enough to fit in a pocket or wear comfortable on a belt. It also support 60s auto sleep, 60 mins auto off, 7 days standby time. Quickly print and tear receipt, widely used in tickets and delivery notices on site, save time and money, improving customer service, XP-P101 is your best choice.

Specification

Printing
Printing method	Direct thermal
Paper width	58mm
Paper roll diameter	≤40mm
Resolution	203 dpi
Printing speed	70mm/s Max.
Interface	USB+Bluetooth/ USB+WIFI/ USB+Bluetooth+WIFI
Line space	3.75mm（changeable using commands）
Column number	58mm paper: Font A - 32 columns/Font B - 42 columns/ Chinese,traditional Chinese - 16 columns
Character size	ANK，Font A：1.5×3.0mm（12×24 dots）Font B：1.1×2.1mm（9×17 dots） simplified/traditional Chinese：3.0×3.0mm（24×24 dots）
Barcode Character
Extension character sheet	PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、 PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251）
Barcode types	UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/CODABAR/CODE93/CODE128
2D Barcode	QR code
Buffer
Input buffer	32k bytes
NV Flash	64k bytes
Software
Emulation	ESC/POS
Driver	Windows/Linux/Android/Mac
Utility	Windows & Linux test Utility
SDK	iOS/Android/Windows
Power
Power adaptor	Input：AC 110V/240V, 50～60Hz Output：DC 9V/2A
Printer power	DC 9V/2A
Physical characteristics
Gross weight	0.215 kg

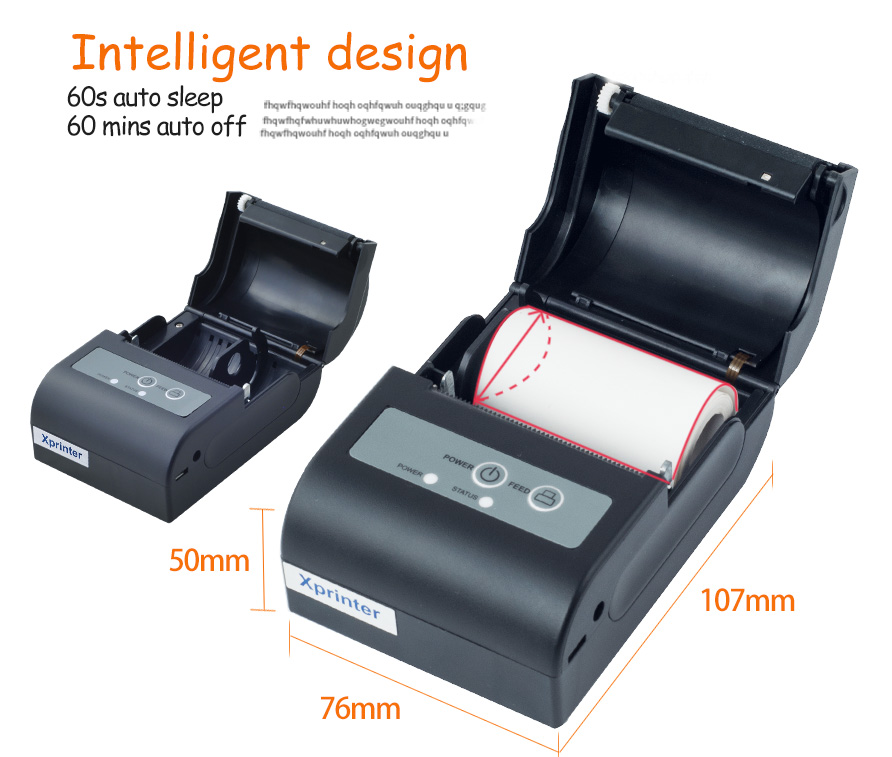

Dimensions	107×76×50mm(D x W x H)
Environmental Requirements
Work environment	0～45℃, 10～80% RH
Storage environment	-10～60℃, 10～90% RH（no condensation）
