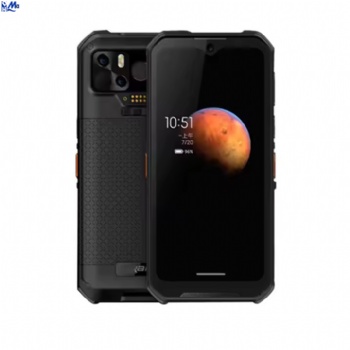

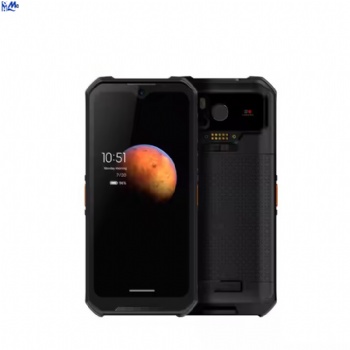

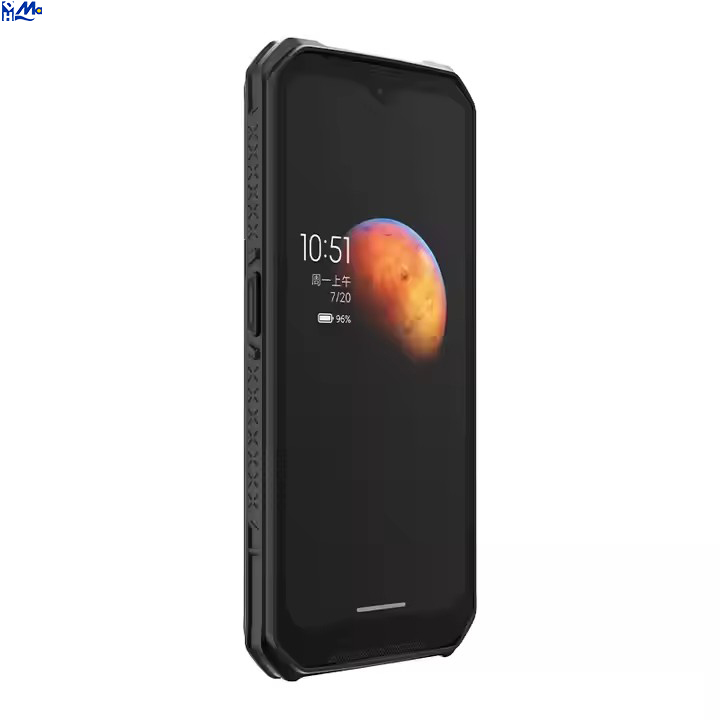

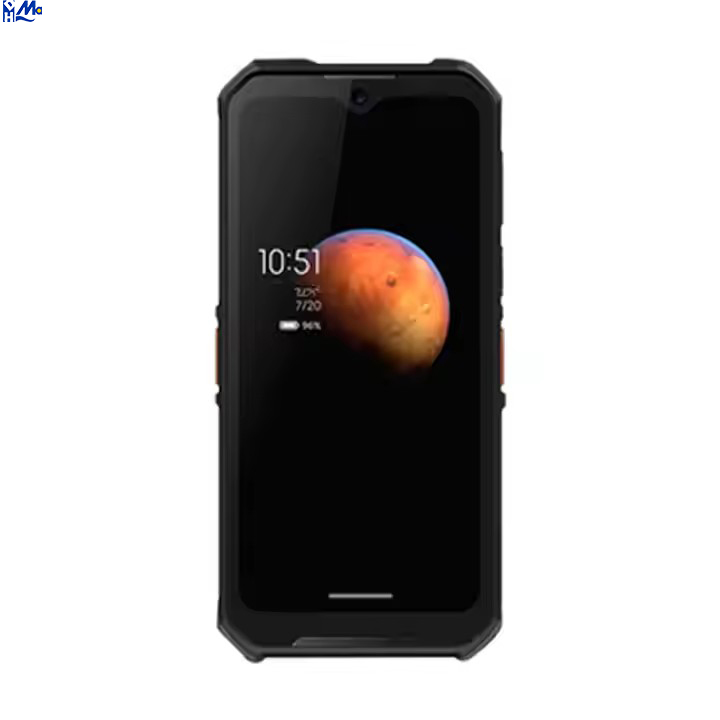

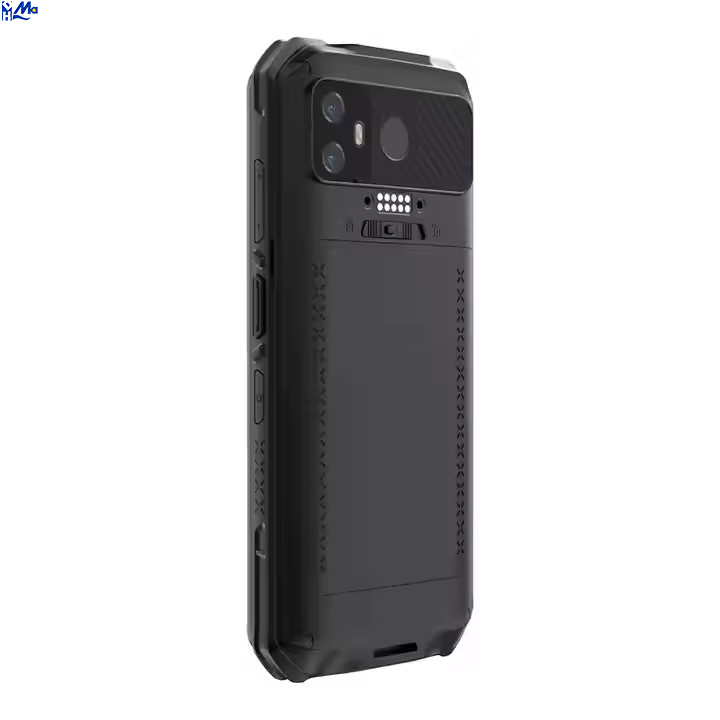

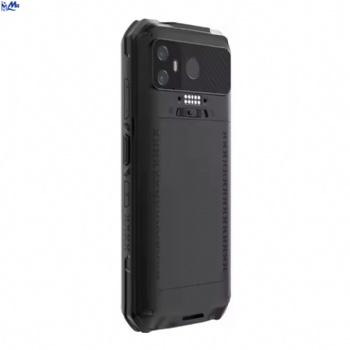

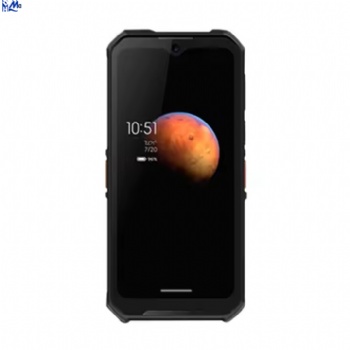

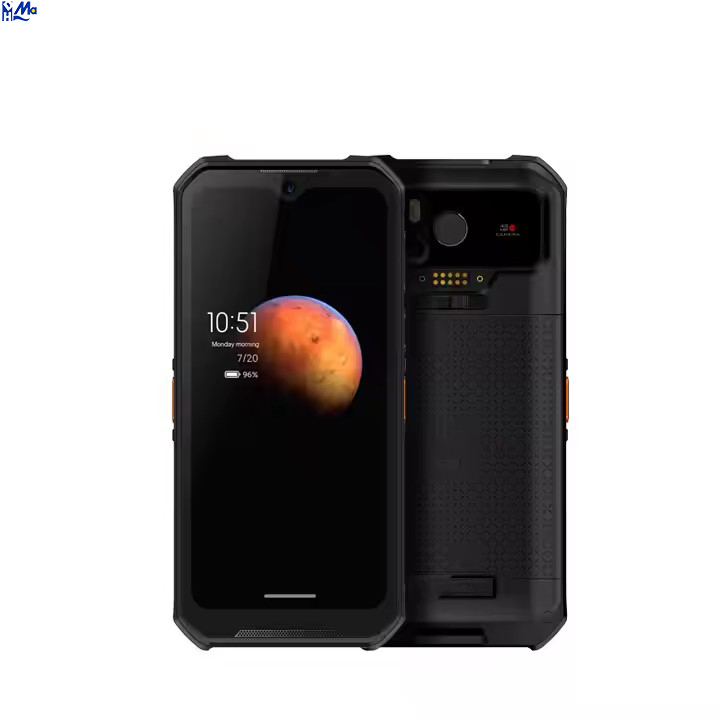

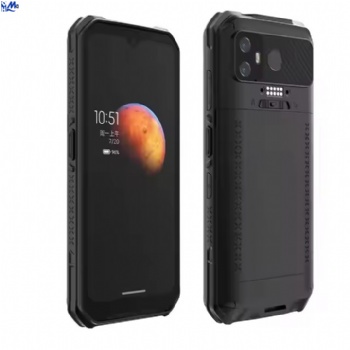

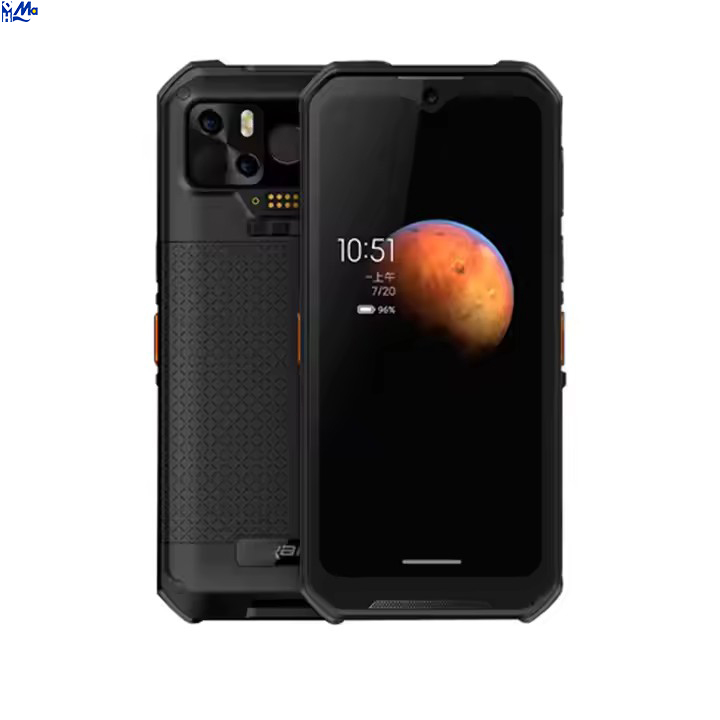

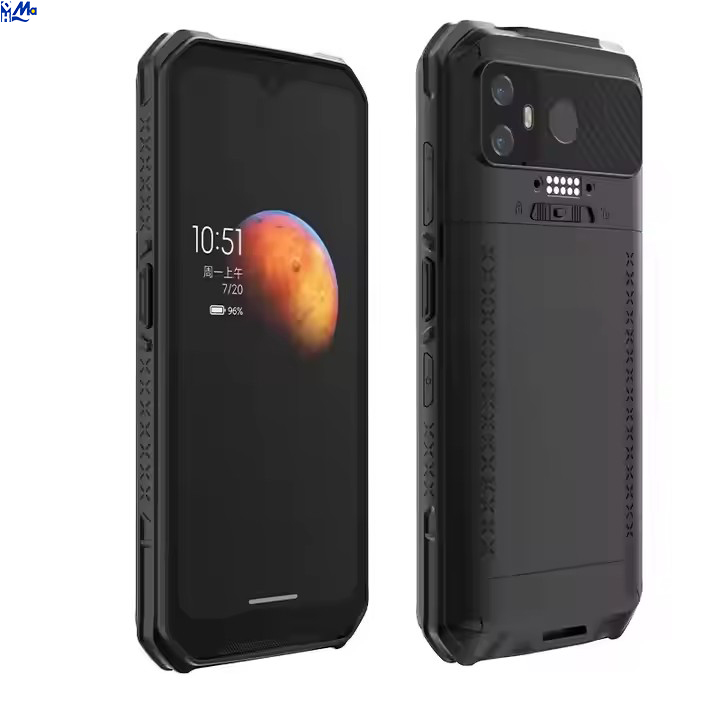

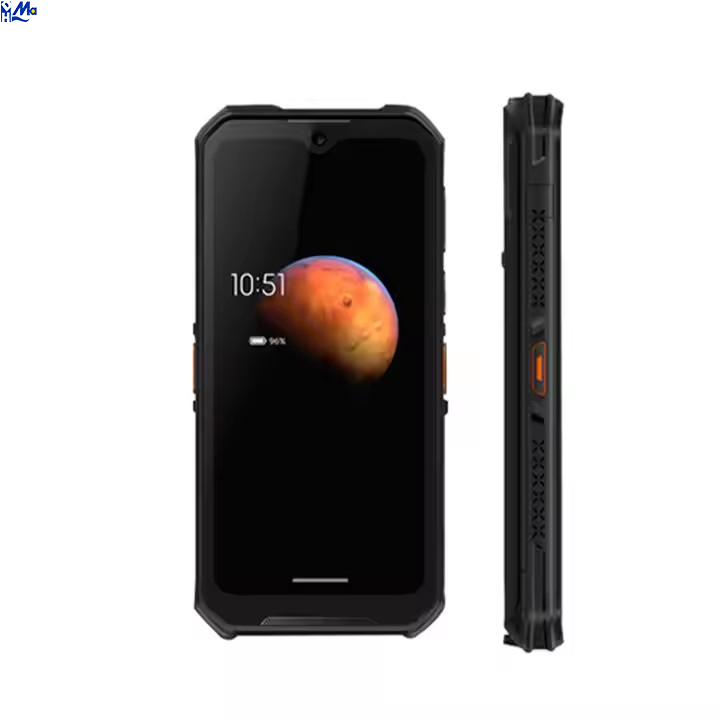

KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS

KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS

  • KP26 Handheld Industrial Rugged Tablet Android 12 Data Collectors Industrial PDA 1D 2D Barcode Scanner PDAS
  • EMAIL   INQUIRY

Product Specification

Basic
configuration

Product Model

KP26



CPU

MTK MT900 ,6nm, 8 core 2*A78 @2.4GHz,6*A55 @2.0GHz



OS Version

Android ™ 11.0



RAM

6GB LPDDR4X



ROM

128GB



5G wireless transferring
(All Netcom)

GSM: 2/3/5/8
WCDMA: 1/2/5/8
TDS: 34/39 (compatible)
TDD: 34/38/39/40/41
FDD: 1/2/3/5/7/8/20/26/28AB
5G: N1/N3/N8/N38/N41/N77/N78/N79/N28AB



LCM

LCD- 1

6.217 inch (IPS) , HD+ , 720* 1520, IC: GT911



Cover plate

Cover plate: Corning GC3, fully fitted, 1. 1mm, with AF anti fingerprint oil

 G+FF process, support glove touch



LCD-2

6.3 inch TFT(IPS) FHD+ Resolution: 1080*2340



Cover plate

Cover plate: Corning GC3, full fit, 1. 1mm, INCELL multi-touch with AF anti
fingerprint oil support glove touch



Camera

Front

MIPI interface, Mega pixel: 8mp FF fixed, IC:OV8858



Rear

MIPI interface, Mega pixel:48mp PDAF , F1.79
IC: Samsung: S5KGM2SP, 1/2.3 inch ,6P



Rear secondary camera

MIPI interface, Mega pixel: 5mp, IC type: Samsung: S5K5E8



Thermal imaging camera

Type: Tiny1-C, resolution: 256* 192



Infrared temperature
measurement

Type:PMR78100-B



Flashlight

Support(red/green/blue)



Chip carrier

SIM card

Support, NANO card (optional)



TF card

Support, up to 256GB



Wireless data

Data link

4G:TDD LTE FDD LTE
3G:HSPA+ ,EVDO , GPRS EDGE;
2G:GPRS class 12/EDGEE
5G:NR



Wi-Fi

2.4G/5G/WIFI6: LAN 802. 11 ax/ac/a/b/g/n



GPS

GPS/Beidou/Galileo/GLONASS/AGPS



Bluetooth

Bluetooth 5.1



FM

Not Support



NFC

Support 13.56MHz
- ISO/IEC 18000-3、 18092
- ISO/IEC 14443 A/B
- ISO/IEC 15693 Mifare compliance



IO interface

USB interface

Support TYPE-C, 5V/3A, 3.0USB, 24PIN, OTG



Earphone interface

Support 3.5mm independant interface, compatible PTT Earphones



Fingerprint

Support



Cradle

Support



Sensor

Light/Distance

Support



3D Accelerated Gravity

Support



Geomagnetism

Support



Gyroscope

Support



Altitude pressure

Support



Automatic heating

Support



Scan
module

Standard

CM60



compatible

Honeywell N6703/N4703/HS7 ,Zebra SE4710



Audio

Power amplifier

K type



Speaker

1.5W power 8 Ω * 2, 1318 waterproof speaker or 1W * 2



Receiver

IP68 waterproof



Motor

Support



MIC

Adopting digital MIC and IG1202 noise reduction chip, the noise reduction

mode can be turned on and off



Button

Left

Scan button * 1



Right

Power on button * 1, Volume+- button * 1, Scan button * 1



Power

PE+ 2.0

TYPE-C 5V/3A 15W



Battery

Built-in battery

5000mAh gel polymer battery, 4.35V (3.8V), 10K NTC resistance



Module

ID card module

Support



Printer module

Support



Beidou module

Support



Explosion proof design

Support



Accessories

Adaptor PE+

Type:APS-KI015W-G
Input:AC:100-240V 50/60HZ 0.5A MAX
Output:DC:5V/7V/9V--1.57A, 12V--1.25A



Cable

TYPE-C: 7.8mm,Total length: 0.8m, 5V/2A, Black



Earphone

Not Support



Dimension

168.3 x 79.5 x 16.9mm



Environment

Working Temperature

-20℃-60℃



Storagy Temperature

-40℃-70℃



Working Humidity

5%-95%



Waterproof

IP68



Product Description

Accessories Parts


Packaging & Shipping

Company Profile

Dahema is a high-tech enterprise specializing in the research, development and application of barcode automatic identification technology. Since its establishment in 2011, Bangyue has always focused on the promotion, application and development of Chinese barcode technology, and has cultivated a number of technical backbones and sales elites in years of technical research and practice. The good pre-sales and after-sales service has made Bangyue Barcode enjoy a high reputation among peers and customers from all walks of life. With professional talent advantages and rich practical experience, we have a stable customer base in retail, public utilities, industrial manufacturing, logistics distribution and other fields, accumulated valuable customer service experience, and won the trust and love of customers.

We serve customers with the tenet of "integrity, professionalism, responsibility and continuity". We have won the trust and support of our customers in various countries around the world, and we continue to adhere to the attitude of learning to serve our customers.

FAQ

Q.:Are you a factory or foreign trade company?
A: We are a factory located in Guangzhou City,Guangdong province.

Q:Do you have MOQ?
A:No moq. Competitive price.

Q: Samples are available for customers testify?
A: Please no doubt with that, of course free samples will offerable for every of our clients.

Q: What's your leading time regarding bulk production?
A: Generally for 3-10 workding days, small productions keep it withing 1-3 working days.

Q: If do bulk production, will make the quality same as the sampling confirmation?
A: Definitely. Quality is the first thing we have to gurantee for our customers, always will go through for a strict line of inspectation to ensure all goods are in good condition.

Q: What about the inferior quality products?
A: Please be sure that we'll do our best to make up the poor quality products if caused by us, but if made by force majeure or shipping in tansit, we still will strive for the biggest benefits for you.

Q: What is the shipping method and shipping time?
A: By sea, by air, by Load,by express, usually 3-25 days.

Q: What's the Payment Terms?
A: T/T, Paypal,Western Union,MoneyGram, Alipay,Wechat,Trade Assurance, 100% paid before shipment.
