Barcode Label Printers > Direct Thermal Printers >

Direct Thermal Printer

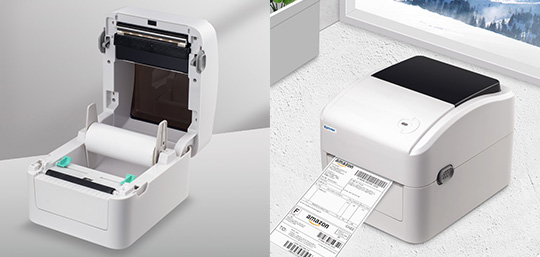

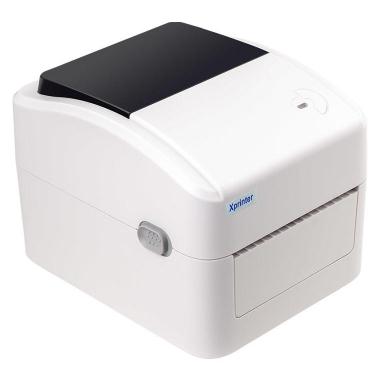

XP-420B is the new model of Xprinter's 4 inches label printer. Its shell design looks so elegant . Having a space-saving body but keeping a large paper loading container.

One multi-functional button and one two-color indicator, simple operation.
EMAIL INQUIRY

XP-420B is the new model of Xprinter's 4 inches label printer. Its shell design looks so elegant . Having a space-saving body but keeping a large paper loading container.
One multi-functional button and one two-color indicator, simple operation.

● 152 mm (6") / s Max. high speed print speed	● 203 dpi resolution models
● 8MB SDRAM，8 MB Flash	● High quality double-walled clamshell design
● Print head temperature intelligent control system make sure printer output stably

Product Specification

Model	XP-420B
Printing Features
Resolution	203 DPI
Printing method	Direct Thermal
Max.print speed	152 mm (6") / s Max.
Max.print width	108 mm (4.25”)
Max.print length	1778 mm
Media
Media type	Continuous, gap, black mark, fan-fold and punched hole
Media width	25.4 mm ~ 115 mm
Media thickness	0.06~0.254 mm (2.36~10mil)
Media core diameter	25.4 ~ 76.2 mm (1 "~ 3 ")
Label length	10 mm ~1778 mm
Performance Features
Processor	32-bit CPU
Memory	8MB Flash Memory, 8MB SDRAM, Flash memory can be expanded to Max. 4 GB
Interface	Standard version: USB Optional:Lan/WIFI/Bluetooth/TF card
Sensors	①Gap sensor ②Cover opening sensor ③Black mark sensor
Fonts/Graphics/Symbologies
Internal fonts	8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software.
1D bar code	Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST,GS1 DataBar, Code 11
2D bar code	PDF-417, Maxicode, DataMatrix, QR code, Aztec
Rotation	0°、90°、180°、270°
Emulaion	TSPL、EPL、ZPL、DPL
Physical Features
Dimension	215 mm (L) x 178 mm (W) x 155 mm (H)
Weight	1.31 kg
Reliability
Warranty	One year
Print head life	30 km or first arrival first
Software
Driver	Windows/ Linux/ Mac
SDK	Windows/ Android/ iOS
Power supply
Input	AC 110-240V
Output	DC 24V 2.5A
Options
Factory Options	①Peeler ②Cutter ③RTC
Dealer Options	①External paper roll holder ②Paper roll spindle ③Extension board for external paper roll holder
Environmental Conditions
Operation environment	5 ~ 40°C（41~104°F），Humidity: 25 ~ 85% no condensing
Storage environment	-40 ~ 60°C（-40~140°F），Humidity: 10 ~ 90% no condensing
