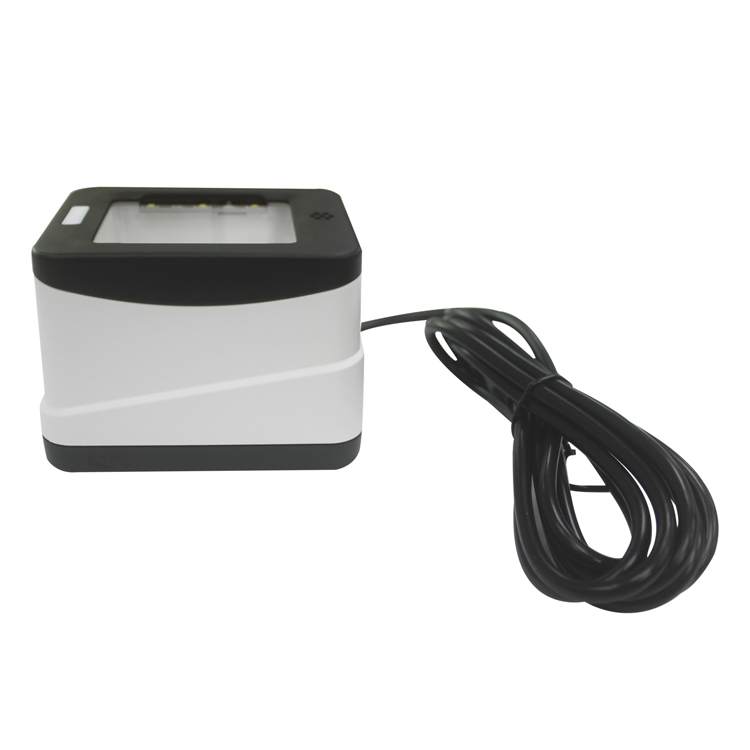

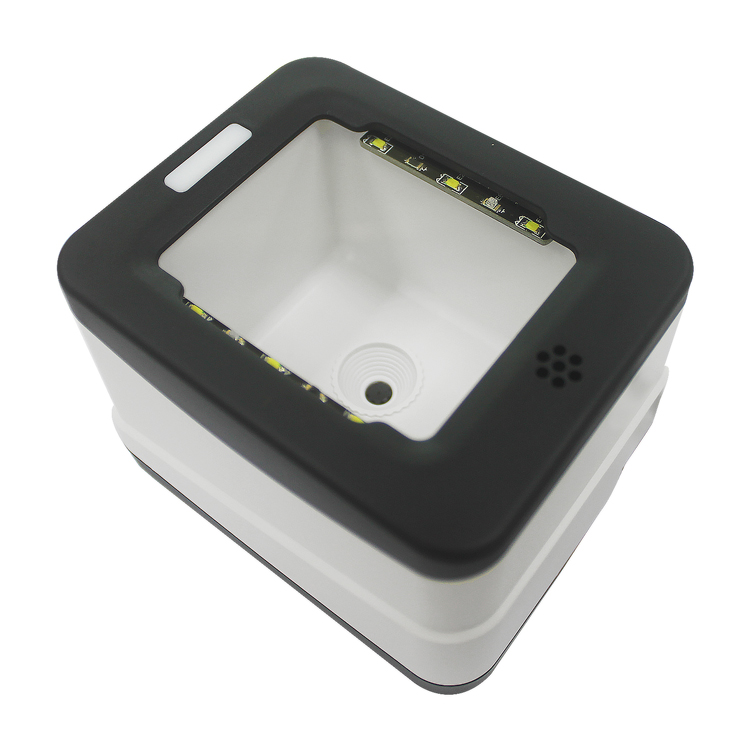

  • barcode scanner box dhma-2001
  • barcode scanner box dhma-2001
barcode scanner box dhma-2001 barcode scanner box dhma-2001

barcode scanner box dhma-2001

  • Quickly identify the screen 1D/2D
    code
    No plugins, lightning billing
    Non-slip drop design
    Very large reading window
    Body and data line integration design
    Compatible with a variety of systems
  • EMAIL   INQUIRY

Erformance

Image Sensor   640×480 CMOS

Ambient light intensity   0~100000 Lux

Symbologies

1D

Code 128UCC/EAN-128AIM 128EAN-8EAN-13 ISSN   ISBNUPC-EUPC-AInterleaved 2 of 5ITF-6ITF-14Matrix 2 of 5(European Matrix 2 of 5)Industrial 25Standard 25Code 39CodabarCode 93Code 11PlesseyMSI-PlesseyRSS-14RSS-LimitedRSS-Expand

2D  PDF417Data MatrixQRMicro QR

Resolution

 ≥5mil

Typical Depth of Field

QR CODE( 30MIL)  -15Cm ODE 128 (10MIL)     0-12CM

Scan Angle

Pitch           ±60°@ 0°Roll and 0° Skew

Roll            360°@ 0°Pitch and 0° Skew

Skew           ±55°@ 0°Roll and 0° Pitch

Symbol Contrast

30%

Interface

RS-232, USB

Physical

Dimensions      102*82*73 mmL*W*HWeight    USB:228g      RS232:261g

Notification

Beep,LED indicator

Current

Maximum     <200mA

Operating    150mA±15mA

     Standby      80mA±2mA

Environmental

Operating Temperature   -20℃~50℃

Storage Temperature       -40℃~70

Humidity      5%~95%non-condensing
