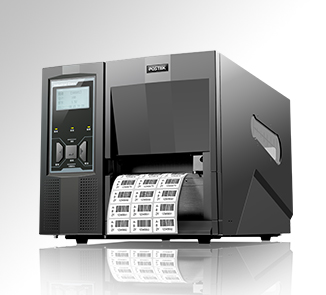

Barcode Printer TX

To make wisdom more intelligent, the TX series touch-screen printer inherits the advantages of various industrial equipment,
The newly upgraded large color touch screen and simple and clear interface design not only bring users smooth, efficient, relaxed and pleasant human-computer interaction,
It also integrates various leading technologies innovated and developed by POSTEK, automatic precision printing pressure control system, and automatic paper feeding accuracy calibration technology (ADAPT ™） wait.
Now, you just need to select the screen function and click it. More intelligent and simple operation, more pleasing quality, bring more than the past printing experience.
EMAIL INQUIRY

Product features

Strong data processing capability

The advanced and powerful quad core processor is adopted, and the original and leading printer thermal history control technology HEAT is applied ™， Take you to enjoy the exquisite and exquisite beyond the past when experiencing the surging power.

Innovative fixed movement frame

The subtly designed fixed movement frame is a great innovation. It perfectly integrates the unmatched stability and durability of industrial grade equipment with the ease of installation, interpreting POSTEK's brand DNA of "exquisite design, easy use and durability".

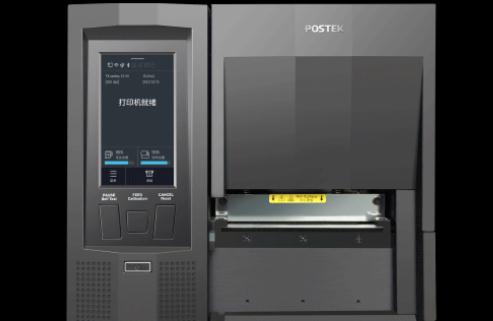

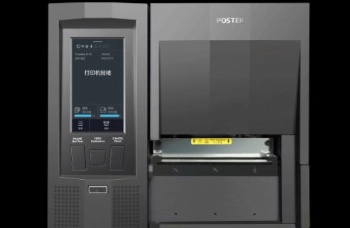

4.5 inch color touch screen

Equipped with 4.5 inch color touch screen, smooth operation, pleasant human-computer interaction, such extraordinary charm and ability make people fall in love at first sight.

Paper feeding accuracy calibration (ADAPT ™）

The paper feeding accuracy can be quickly and simply restored by executing the "Paper feeding accuracy is accurate" operation. Say goodbye to the trouble of printing content deformation caused by cots wear, paper thickness change or paper surface friction coefficient difference, and reduce cots replacement frequency. The arrival of this powerful and handy technology has opened up a new world for the development of the industry, helping you to print with ease.

Intuitive and convenient tightening torque adjusting device for carbon belt

Breaking the convention, humanized innovation has brought unprecedented simplicity and convenience. The tension torque adjustment device on the carbon belt supply and recovery shaft is clear at a glance, providing users with the most intuitive, accurate, simple and convenient carbon belt pressure adjustment scheme so far.

Consumable allowance at a glance

Through the LCD screen, you can clearly understand the allowance of consumables, and make adequate preparations in advance according to your printing volume.

Printer Model	TX2	TX3
Printing Method	Thermal Transfer & Direct Thermal
Resolution	8dot/mm(200dpi)	12dot/mm(300dpi)
Max.Print speed	10ips(254mm/sec)	8ips(203.2mm/sec)
Max.Print width	4.25"(108mm)	4.17"(106mm)
Max.Print Length	315"(4000mm)	157"(2000mm)
Memory	8 MB FLASH ROM，16 MB SDRAM
Label roll capacity	Width: maximum 4.4 ″ (112 mm), minimum 0.98 ″ (25 mm) Outer diameter: 6 ″ (152 mm) maximum; Inner diameter: minimum 1 ″ (25.4 mm)
Mini Label Width	Thermal transfer: paper tearing mode: 0.20 ″ (5 mm) Paper cutting mode: A150/A400: 0.79 ″ (20 mm) Thermal: paper tearing mode: 1.10 ″ (28 mm) Paper cutting mode: A150/A400: 1.54 ″ (39 mm)
Label Thickness	0.003 ″~0.008 ″ (0.08~0.20 mm), including the thickness of backing paper
Ribbon Roll	Width: 4.3 ″ (110 mm) maximum; Length: 984.25 ′ ′ (300 M) max Outer diameter: 2.75 ″ (70 mm) maximum; Inner diameter: 1 ″ (25.4 mm)
Sensors	Gap transmissive sensor (position adjustable) Black Mark reflective sensor (position adjustabel)
Font	Built in five dot matrix Western fonts and 24 dot matrix Chinese Song typeface; Support downloading TrueType fonts
Font	Built in five dot matrix Western fonts and 24 dot matrix Chinese Song typeface; Support downloading TrueType fonts
Barcode	Code 39, Code 93, Code 128/subset A,B,C, Codabar, Interleave 2 of 5, UPC A/E 2 and 5 add-on, EAN-13/8/128, UCC-128 and so on 1d code MaxiCode, PDF417, Data matrix, QR Code, and so on
Interface	RS-232 serial port, 10/100M adaptive Ethernet port, USB DEVICE 2.0 interface
Weight	15KG
Printer size	Width 11.3 ″ (286 mm) × 17.6 ″ (448 mm) deep × Height 10.7 ″ (271 mm)
Optional accessories	Wi Fi module, Bluetooth module, cutter, external label rewinder
